Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Chemical
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW593-1000
1
25.4 2 1.375 34.9 0.41 0.19 6.0 152.4 200 13.8 *
100 Y
SW593-1500
1-1/2 38.1 2 1.875 47.6 0.63 0.29 9.0 228.6 200 13.8 *
100 N
SW593-2000
2
50.8 2 2.438 61.9 1.01 0.46 12.0 304.8 200 13.8 *
100 Y
SW593-3000
3 76.2 2 3.440 87.3 1.63 0.74 18.0 457.2 200 13.8 *
100 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

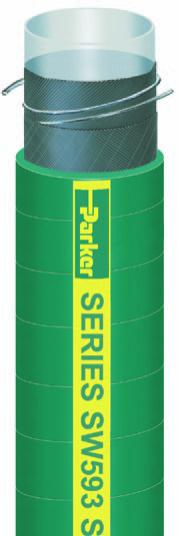

SPARTAN™
UHMWPE Chemical Hose
Series SW593
Series SW593 is a lightweight, high pressure, high temperature suction and discharge hose
designed to handle approximately 98% of commonly used acids, chemicals and solvents.
Te ultra high molecular weight polyethylene (UHMWPE) tube will not leach into and
contaminate the product being conveyed. Te hose construction incorporates a dual wire
helix that provides full suction capability, kink resistance, fexibility for ease of handling,
and a path to conduct a static electrical charge to ground. Te cover is resistant to abrasion,
mild chemicals and ozone.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
Translucent ultra high molecular weight polyethylene (UHMWPE)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Green EPDM; wrapped fnish
Temp. Range:
-40°F to +250°F (-40°C to +121°C)
Brand Method:
Green text on yellow stripe
Brand Example:
PARKER SERIES SW593 SPARTAN™ UHMWPE CHEMICAL SUCTION
HOSE 200 PSI WP
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Acids, chemicals, solvents
• In-plant tank transfer
• Delivery, transport
Vacuum:
Full
Packaging:
Coils
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature,
couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
!
