Chemical

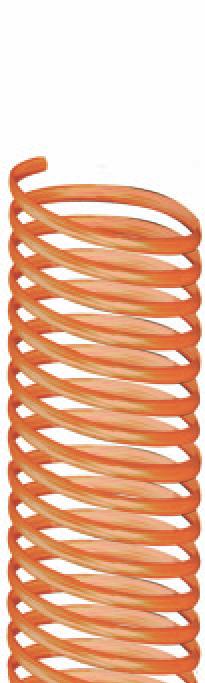

Orange PVC Banding Coil /
PVC Abrasion Coil
Series SP100 / XSP100
Series SP100 is a rugged PVC coil that threads onto a complementary hose end to create a
uniform banding area for coupling attachment. Te coil flls the gaps between the loops of
the outer PVC helix of the hose, providing an area for securing the banding clamp or ferrule.
Series XSP100 threads onto the entire length of a complementary hose to protect it from
abrasion and scufs, helping to extend hose life in highly abrasive areas. Series SP100 and
XSP100 are applied to Parker SP204, SP330, SP353 and SP483 hoses.
SP100
Part
Number
Hose
ID
(in)
Hose
ID
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Turns Stock
Status
**
SP100-2000 2 50.8 0.19 0.09 8 Y
SP100-3000 3 76.2 0.33 0.15 10 Y
SP100-4000 4 101.6 0.46 0.21 10 Y
SP100-6000 6 152.4 1.02 0.46 16 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock
status subject to change. Contact Parker Customer Service.
Optional Colors: Gray, Green, Red, Sand Matte. Specify when ordering.
XSP100
Part
Number
Hose
ID
(in)
Hose
ID
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Ft. Stock
Status
**
XSP100-2000 2 50.8 0.19 0.09 100 N
XSP100-3000 3 76.2 0.33 0.15 100 N
XSP100-4000 4 101.6 0.46 0.21 100 N
XSP100-6000 6 152.4 1.02 0.46 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock
status subject to change. Contact Parker Customer Service.
Optional Colors: Gray, Green, Red, Sand Matte. Specify when ordering.
Other colors available:
Gray
Green
Red
Sand
Matte
