TE
Extruded Polyurethane Hose
POTABLE
The emerging need for better, more effcient water systems in today’s developing world
demands practical answers from suppliers of water-related products. Snap-tite Hose,
a leading manufacturer of lightweight, fexibile hose, can help…whether the need is for
the delivery of drinking water or even as an emergency replacement to broken hydrant
lines or water mains in a disaster. Snap-tite’s TE hose is offered in diameters up to 6
inches (150mm), in typical coupled lengths of 50’ or 100’ or in single lengths to 660 feet
(200 meters). The hose is manufactured of circular woven polyester fabric completely
encapsulated by polyurethane elastomer that is forced through-the-weave.
Snap-tite TE hose is compact and weather, abrasion and crack resistant. Capable of
operating pressures up to 225 psi (1550 kPa) (not all sizes), TE is also made of NSF
Standard 61 approved materials and can be used for potable water.
If you have water to move, Snap-tite has the product to move it.
Properties and Construction
• NSF Standard 61 approved polyurethane is extruded through-the-weave,
lowers drag force and provides long service life.
• Tightly woven polyester reinforcement resists puncture.
• Hose remains fexible to temperatures as low as -40°F (-40°C) and is resistant
to ozone, oxidation and most chemicals or petroleum products.
• Available with aluminum Victaulic™ (6” only) or aluminum or brass NST/IPT
threaded couplings (to 3” I.D. only).
• Snap-tite TE is manufactured within our ISO-9001:2000 certifed quality
assurance system.
Construction:
Polyurethane Extruded
Through-the-Weave, Polyester
Reinforcement
Temperature Range:
-40° to 180°F (-40° to 80°C)
Coupling:
Aluminum or Brass NH/NST
or IPT Threaded, Aluminum
Victaulic (6” only)
Hose Colors:
Part Number Example:
TE20X50K15NBR
= TE Hose, 2” ID by 50’ Length, Black, 1-1/2” Brass Rocker Lug- NH/NST
Threaded Coupling
How to Order
TE 20X50
K
15
N BR
TE
15 = 1-1/2”
50 = 50’
Y = Yellow
15 = 1-1/2”
N = NH
Blank=
AS =
17 = 1-3/4”
100 = 100’
R = Red
20 = 2”
I = IPT
Aluminum
Anti-Static Wire
20 = 2”
B = Blue
25 = 2-1/2”
V =
(2) in 1-1/2”, 2”,
25 = 2-1/2”
K = Black
60 = 6”
Victaulic
BR= Brass
and 3” only
30 = 3”
(6” only)
Rocker Lug
(contact factory
40 = 4”
for extra cost)
45 = 4-1/2”
BP=Brass
PW = Potable
50 = 5”
Pin Lug
Water (this
60 = 6”
option can be
added at NO
additional cost)
-
Type TE
I -13
SIZE
MAX. OPERATING
BURST
WEIGHT
BOWL
PRESSURE
(For 50’ coupled)
SIZE
PSI (kPa)
PSI (kPa)
LBS (KG)
IN
1-1/2”
225 (1550)
900 (6200)
13 (5.9)
1-13/16
1-3/4”
225 (1550)
900 (6200)
15 (6.8)
2-1/16
2”
225 (1550)
900 (6200)
17 (7.7)
2-5/16
2-1/2”
225 (1550)
900 (6200)
22 (10)
2-13/16
3”
175 (1205)
700 (4825)
29 (13.2)
3-5/16
4”
150 (1035)
500 (3450)
46 (20.9)
4-5/16
4-1/2”
150 (1035)
500 (3450)
55 (25)
4-13/16
5”
150 (1035)
500 (3450)
60 (27.2)
5-5/16
6”
125 (860)
400 (2760)
83 (37.6)
6-5/16
Victaulic is a registered trademark of the
Victaulic Company
TYPE
HOSE
HOSE
COLOR
COUPLING
THREAD
COUPLING
OPTIONS
I.D.
X LENGTH
SIZE
TYPE
MATERIAL

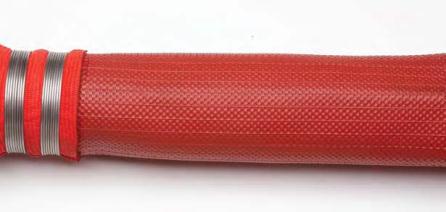

Polyester Fabric
Reinforcement
Polyurethane
Thru-the-Weave
