Page 21 - GOODYEAR RUBBER PRODUCTS INC 1-866-711-4673 Snaptite Municipal Fire Hose Catalog

XL
Extruded Nitrile Rubber Hi-Rise Hose
SIZE SERVICE PROOF BURST WEIGHT FLAT HOSE BED BOWL
TEST TEST (For 50’ Coupled) WIDTH Volume (100’) SIZE
Snap-tite XL is our lightest weight, rubber covered fire hose that utilizes
high tensile strength nylon yarn in the reinforcing jacket to form an
interlocking matrix. The unique construction provides a flexible, kink resistant,
highly maneuverable hose which packs and coils easily.

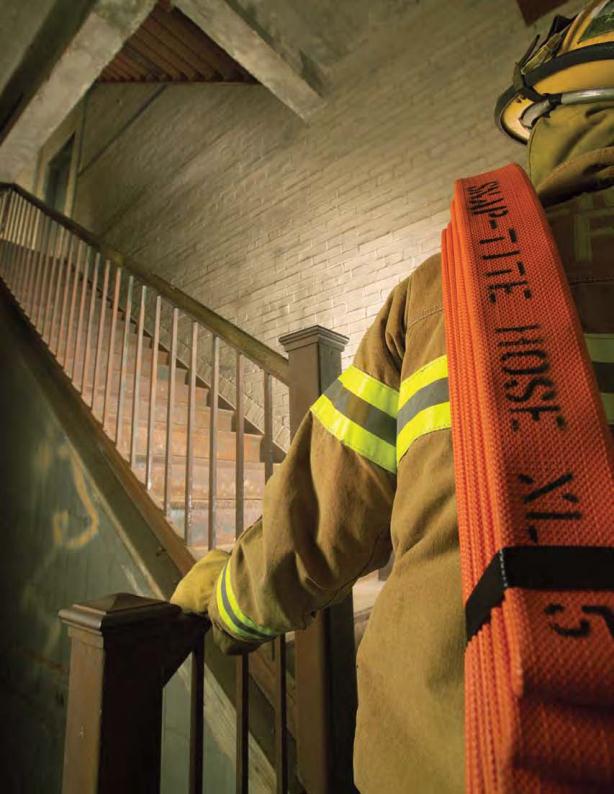

XL is a high quality, lightweight fire hose that has application in hi-rise back
packs when a rubber hose is preferred.
Properties and Construction
• XL is an extruded thru-the-weave, nitrile rubber fire hose. The
reinforcement is made with circular woven, twill weave, nylon fibers.
• Highly resistant to both contact and radiant heat.
• Hose remains flexible to temperatures as low as -5°F (-20°C) and is
resistant to ozone, oxidation, and most chemicals or petroleum products.
• Maintenance free, no drying required, and is easily cleaned.
• Engineered for hi-rise applications but can be used as an alternative to
all types of conventional hose. It is designed to comply with BS 6391,
Type 2 applications.
• Snap-tite XL is manufactured in accordance with NFPA 1961 standard, latest
edition within our ISO-9001: 2000 certified quality assurance system.
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: XL17X50O15NBR = XL Hose, 1-3/4” ID by 50’ Length, Orange, 1-1/2” Brass Rocker Lug
- NH/NST Threaded Coupling
How to Order
XL 17X50 O 15 N
XL 15 = 1-1/2” 50 = 50’ O = Orange 15 = 1-1/2” N = NH Blank=
17 = 1-3/4” 100 = 100’ 20 = 2” I = IPT Aluminum
25 = 2-1/2” 25 = 2-1/2” BW = BR= Brass
British Rocker Lug
Instanta- BP= Brass
neous Pin Lug
G=Gunmetal
(BW Thread only)
BR
PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN FT 3 IN
1-1/2” 200 (1380) 400 (2760) 600 (4140) 9 (4.1) 2.50 1.5 1-13/16
1-3/4” 200 (1380) 400 (2760) 600 (4140) 11 (5) 2.90 2.0 2-1/16
2-1/2” 200 (1380) 400 (2760) 600 (4140) 15 (6.8) 4.10 2.5 2-13/16
Construction:
Lightweight Extruded Nitrile
Cover/Liner, Nylon Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Couplings Available:
Aluminum or Brass NH/NST or
IPT Threaded & Gunmetal Wired-on
British Instantaneous Coupling
- Type XL
M-21
Nylon Fabric
Reinforcement
Nitrile Rubber
Thru-the-Weave
HI-RISE
Hose Colors:
