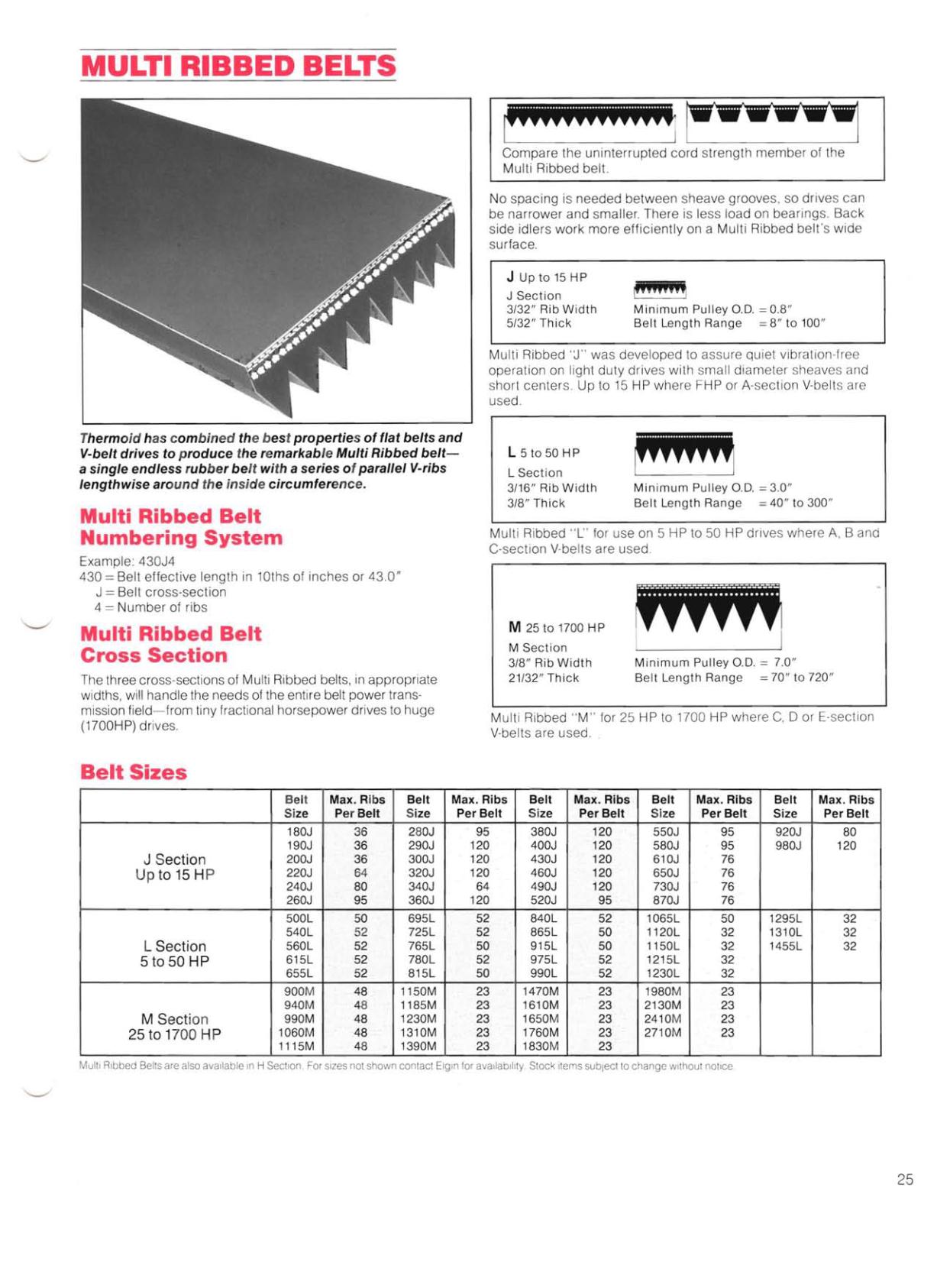

MULTI RIBBED BELTS
Compare the uninterrupted cord strength member of the
Multi Ribbed belt
Thermoid has combined the best properties
of
flat belts and
V-belt drives
to
produce the remarkable Multi Ribbed belt­
a
single endless rubber belt with
a
series
of
parallel V-ribs
lengthwise around the inside circumference.
No spacing is needed between sheave grooves, so drives can
be narrower and smaller. There is less load on bearings. Back
side idlers work more efficiently on a Multi Ribbed belt's wide
surface.
J
Upt015HP
J Section
,"'"hiS
3/32" Rib Width
Minimum Pulley
0.0. =
0.8"
5/32" Thick
Belt Length Range
=
8" to 100"
Multi Ribbed
'J"
was developed to assure quiet vibration-free
operation on light duty drives with small diameter sheaves and
short centers Up to 15 HP where FHP or A-section V-belts are
used.
L
5 to 50 HP
L Section
3/16" Rib Width
Minimum Pulley
0.0.
=
3.0"
3/8" Thick
Belt Length Range
=
40" to 300"
Multi Ribbed "L" for use on 5 HP to 50 HP drives where A, Band
C-section V-belts are used.
M
25 to 1700 HP
M Section
3/8" Rib Width
Minimum Pulley
0.0. =
7.0"
21/32" Thick
Belt Length Range
=
70" to 720"
Multi Ribbed "M" for 25 HP to 1700 HP where C, D or E-section
V-belts are used
Multi Ribbed Belt
Numbering System
Example 430J4
430
=
Belt effective length in 10ths of inches or 43.0"
J
=
Belt cross-section
4
=
Number of ribs
Multi Ribbed Belt
Cross Section
The three cross-sections of Multi Ribbed belts, in appropriate
widths, will handle the needs of the entire belt power trans­
mission field-from tiny fractional horsepower drives to huge
(1700HP) drives.
Belt Sizes
Belt
Size
Max. Ribs
Per Belt
Belt
Size
Max. Ribs
Per Belt
Belt
Size
Max. Ribs
Per Belt
Belt
Size
Max. Ribs
Per Belt
Belt
Size
Max. Ribs
Per Belt
180J
36
280J
95
380J
120
550J
95
920J
80
190J
36
290J
120
400J
120
580J
95
980J
120
J
Section
200J
36
300J
120
430J
120
610J
76
Up to 15 HP
220J
64
320J
120
460J
120
650J
76
240J
80
340J
64
490J
120
730J
76
260J
95
360J
120
520J
95
870J
76
500L
50
695L
52
840L
52
1065L
50
1295L
32
540L
52
725L
52
865L
50
1120L
32
1310L
32
L Section
560L
52
765L
50
915L
50
1150L
32
1455L
32
5t050HP
615L
52
780L
52
975L
52
1215L
32
655L
52
815L
50
990L
52
1230L
32
900M
48
1150M
23
1470M
23
1980M
23
940M
48
1185M
23
1610M
23
2130M
23
M Section
990M
48
1230M
23
1650M
23
2410M
23
25 to 1700 HP
1060M
48
1310M
23
1760M
23
2710M
23
1115M
48
1390M
23
1830M
23
Multi Ribbed Belts are also available In H Section. For sizes not shown contact Elgin for availability Stock items subject to change Without notice.
