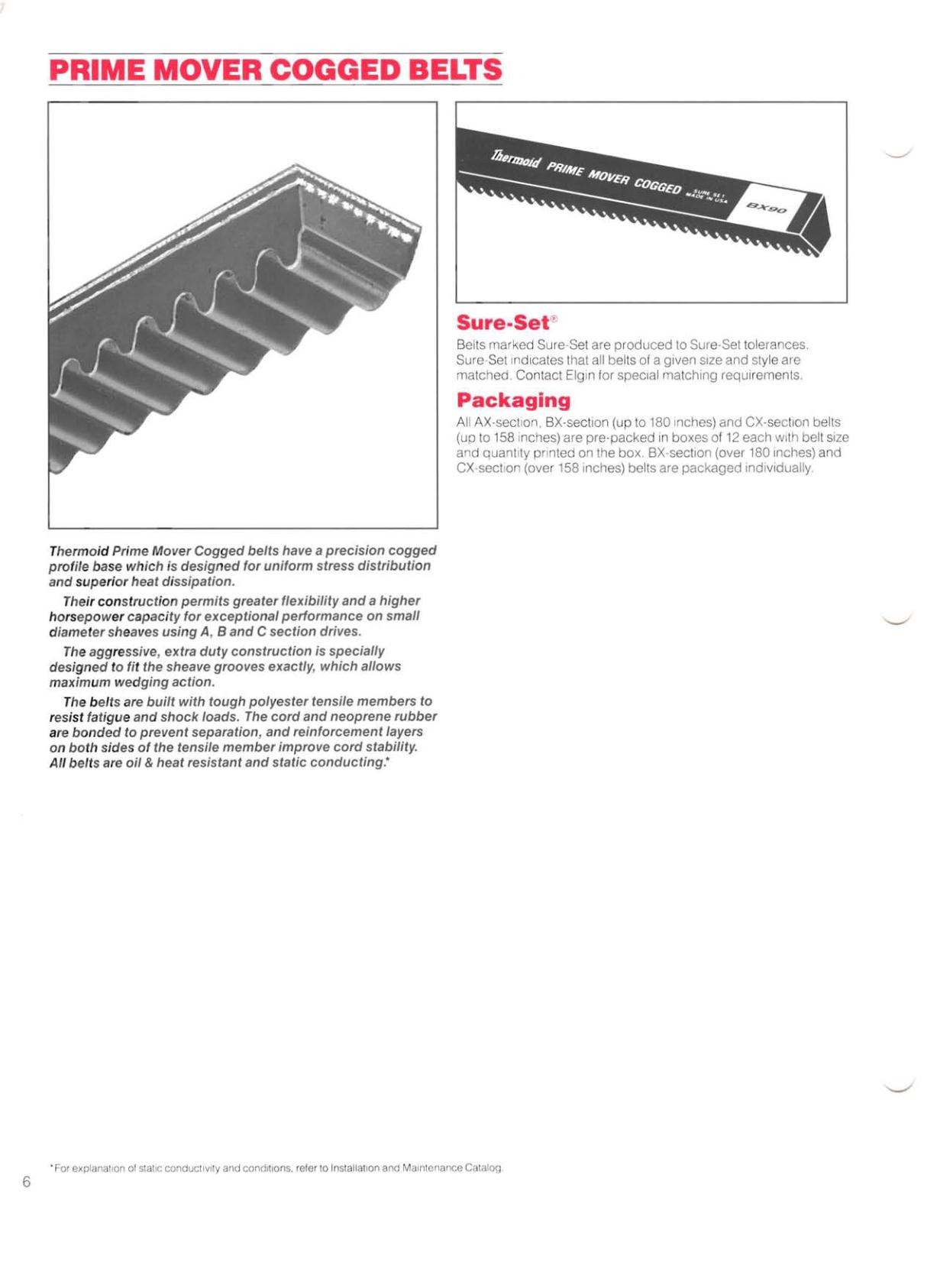

PRIME MOVER COGGED BELTS
Sure-Set®
Belts marked Sure-Set are produced to Sure-Set tolerances
Sure-Set indicates that all belts of a given size and style are
matched Contact Elgin for special matching requirements.
Packaging
All AX-section, BX-section (up to 180 inches) and CX-section belts
(up to 158 inches) are pre-packed in boxes of 12 each with belt size
and quantity printed on the box. BX-section (over 180 inches) and
CX-section (over 158 inches) belts are packaged individually.
Thermoid Prime Mover Cogged belts have a precision cogged
profile base which is designed for uniform stress distribution
and superior heat dissipation.
Their construction permits greater flexibility and a higher
horsepower capacity for exceptional performance on small
diameter sheaves using A, Band C section drives.
The aggressive, extra duty construction is specially
designed to fit the sheave grooves exactly, which allows
maximum wedging action.
The belts are built with tough polyester tensile members to
resist fatigue and shock loads. The cord and neoprene rubber
are bonded to prevent separation, and reinforcement layers
on both sides of the tensile member improve cord stability.
All belts are oil & heat resistant and static conducting:
. For explanation of static conductivity and conditions, refer to Installation and Maintenance Catalog.
