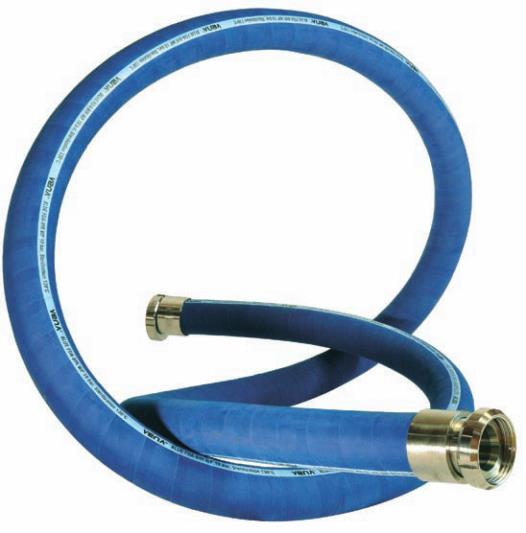

VENA BLUE
PROTECTION FOR THE CONNECTIONS
Hose Properties
• The hose is absolutely odourless, tasteless and completely non-toxic.
• White colour and smooth inner appearance, blue coloured and smooth outer appearance.
• Outer excellent resistance to termal aging, ozone agents, abrasion and, due to its strong and durable construction, it is suitable
against floor friction and bad weather conditions.
• This reference is in compliance with FDA 21 CFR 177.2600 and BfR XXI.
• This product can operate with pressure according to the technical specifications attached below.
• Can be equipped with 316L stainless steel fittings on each end with a rugosity value of less than 0,8µm (or 0,5µm under request).
• Operational temperature range from -30ºC to +90ºC (-22ºF to 194ºF). It may reach up to 130ºC (266ºF) for a maximum time of
120 minutes. It can be sterilised at 130ºC (266ºF).
• Available in a maximum length of 40m (131ft).
• The bending radius is variable depending on the inner pressure.
Construction
This product is manufactured with inner food grade EPDM
and outer blue EPDM rubber cover. Besides, it is equip-
ped with rubber embedded textile reinforcement. These
hoses have no spiral reinforcement, which allows to be run over
by vehicles.
Applications
Specially recommended for the transport and tank truck unloading
of milk, liquor, fruit juice and all types of animal and vegetal
origin food products.
Limitations
Chemical compatibility of the fluid with food grade EPDM.
Not recommended to work in vacuum.
VENAIR offers supplementary protection devices for its entire
product line in order to increase service life.

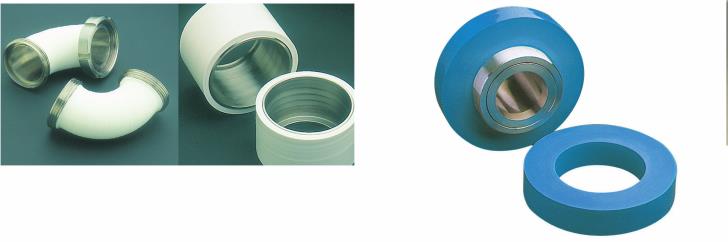

SILICONE COVER FOR THE METALLIC CONNECTIONS
In order to avoid burns while handling any hot metallic
connections after a sterilization process.
ANTI-SHOCK STOPS
Used to protect the metal fittings of our hoses in order to prevent
damage and deformation in case of dropping or excessive hose
assembly handling
ID - Inner Diameter OD - Outer Diameter Working Pressure
Water at 20ºC
Bursting Pressure
Water at 20ºC Weight
(mm) (inch) (mm) (inch) (bar) (psi) (bar) (psi) (kg/m)
19 0,75 30 1,18 10 145,04 30 435,11 0,55
25 0,98 36 1,42 10 145,04 30 435,11 0,75
32 1,26 43 1,69 10 145,04 30 435,11 0,85
38 1,50 49 1,93 10 145,04 30 435,11 1,00
51 2,01 63 2,48 10 145,04 30 435,11 1,30
63 2,48 75 2,95 10 145,04 30 435,11 1,60
76 2,99 89 3,50 10 145,04 30 435,11 2,10
102 4,02 116 4,57 10 145,04 30 435,11 2,80
