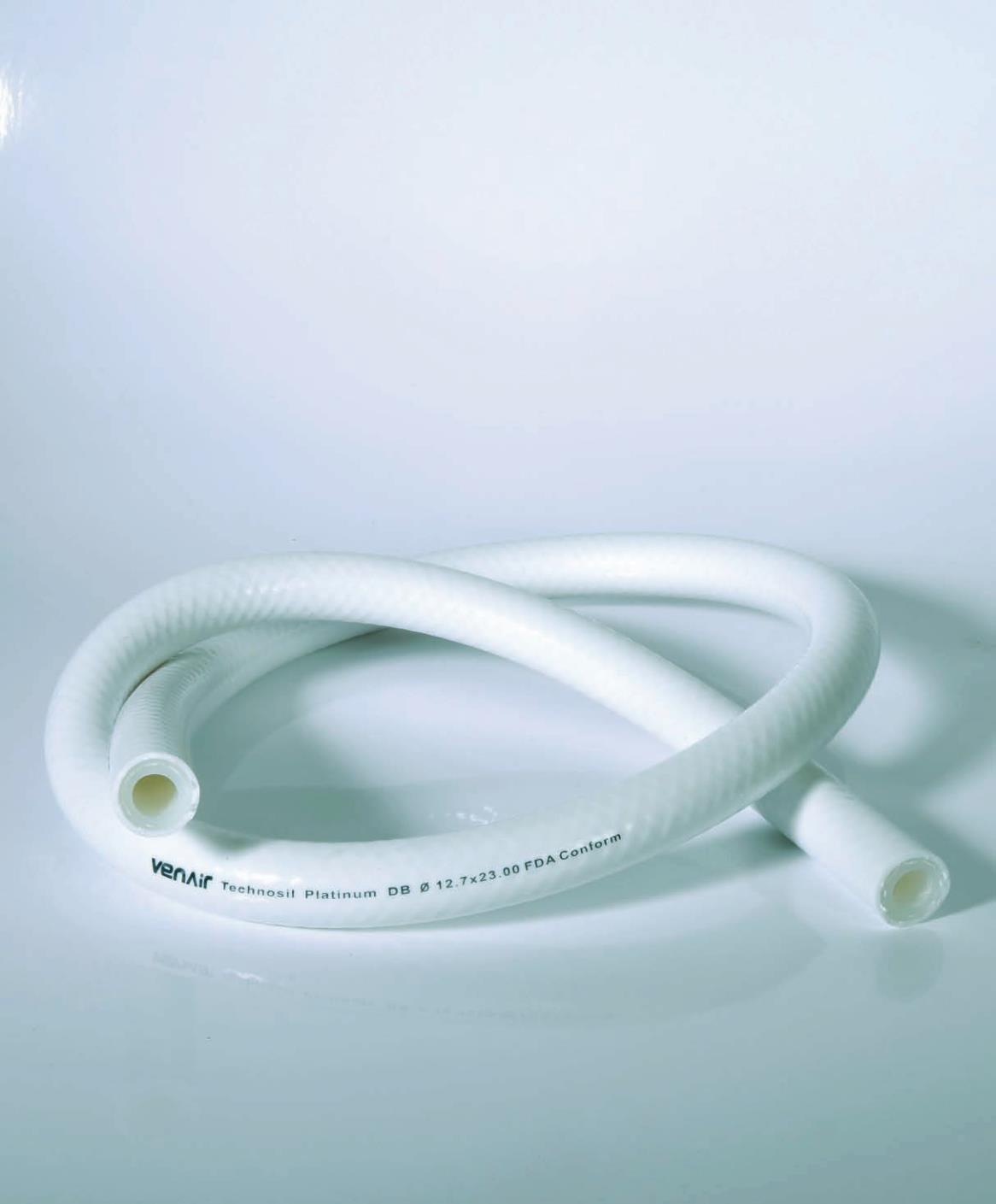

VENA TECHNOSIL DB
Double Braiding
Elastomer:
Extruded Platinum cured silicone produced in accor-
dance with:
•
US FDA (Foods and Drugs Administration) Standard
21 CFR 177.2600
•
German BfR Standard part XV
•
1935/2004/EC Regulation and European Council
Resolution AP 2004 (5) – silicones
•
USP Class VI standard (inner liner)
•
3A Sanitary Standard 18-03 Class I (hose)
•
3A Sanitary Standard 62-02 (fitted hoses)
Fabric reinforcement:
Double polyester braiding.
Stainless steel inside:
No
Inner appearance:
Translucent and smooth.
Outer appearance:
White and smooth.
Standard length of manufacture:
10m (33ft) and 20m (66ft)
Temperature scale:
-60º C / +180º C (-76º F / 356º F)
Pressure Resistance:
3 times higher than the standard Vena Te-
chnosil (Please, check the Technical Data Sheet).
Applications:
Due to its special construction, this product is spe-
cially recommended for applications where a high Pressure resis-
tance and a small bending radius is required.
It is not recommended for vacuum.
Inner Diameter *
Outer Diameter
Working Pressure **
Bursting Pressure **
Bending Radius
ISO 1402/2009
ISO 1402/2009
ISO 1746/2000
(mm)
(inch)
(mm)
(inch)
(bar at 20ºC)
(psi at 68ºF)
(bar at 20ºC)
(psi at 68ºF)
(mm)
5,00
1/5
13,00
0,51
25,2
364,9
75,5
1095
30
6,35
1/4
16,00
0,63
23,7
344,3
71,2
1033
34
7,90
1/3
18,00
0,71
22,8
331,4
68,5
994
37
9,52
3/8
20,00
0,79
22,3
323,5
66,9
971
46
12,70
1/2
23,00
0,91
19,4
281,9
58,3
846
51
15,80
5/8
27,00
1,06
17,0
246,2
50,9
739
65
19,05
3/4
30,50
1,20
15,6
226,0
46,8
678
76
22,00
7/8
33,00
1,30
14,0
202,3
41,9
607
99
25,40
1
37,00
1,46
12,5
181,3
37,5
544
118
28,00
1 1/8
38,00
1,50
11,7
169,2
35,0
508
160
31,75
1 1/4
46,00
1,81
10,1
146,0
30,2
438
181
7
* Other diameters can also be manufactured. Please consult.
** Pressure data hold at room temperature. Please reduce pressure values by 20% for each increase of 100ºC / 212ºF
