Page 13 - 09GHOS049_HoseCatalog2009_v3_060809.indd

AIR & MULTIPURPOSE
22
AIR &
MULTIPURPOSE
General Purpose
Heavy Duty
Push-on
CHEMICAL
TRANSFER
CLEANING
EQUIPMENT
FOOD
Transfer
Washdown
MARINE
MATERIAL
HANDLING
Abrasives
Bulk Transfer
Cement & Concrete
MINING
PETROLEUM
Aircraft Fueling
Dispensing
Dock
Transfer
SPRAY
STEAM
VACUUM
VEYANCE
WATER
Discharge
Suction &
Discharge
Washdown
WELDING
COUPLING
SYSTEMS
APPENDIX
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:

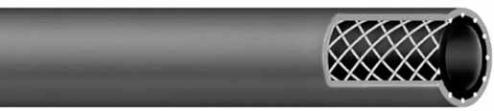

A lightweight, economical general purpose hose for carrying air, water and many spray solu-
tions. Pliovic® is suitable for a wide range of industrial, construction, agricultural hand
sprayers and many multipurpose applications. Nonconductive, minimum electrical resistance
greater than one (1) megohm per inch of hose length at 1000 Volts DC. Available in Pliovic®
GS construction or a thick cover, Pliovic® Plus construction. Non-marking cover.
Black Pliovic®, RMA Class B (Medium Oil Resistance)
Pliovic® , smooth finish, RMA Class B (Medium Oil Resistance)
Spiral synthetic yarn
-10°F to 158°F (-23°C to 70°C) for GS and Pliovic® Plus 250
1/4”– 1/2” 750’ reels, maximum 3 pieces, 50’ increments
5/8” 500’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 Only)
3/4” 450’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 Only)
1” 400’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 Only)
1¼”– 2” 300’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 Only)
Coupled assemblies availabe upon request. Contact hose marketing for availability on cut,
coiled, and tied hose lengths.
Example: Pliovic® GS 3/8” ID (9.5 mm) 250 psi WP. Made in USA. Goodyear ®.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
See next page.
PLIOVIC®
Product Specifications
