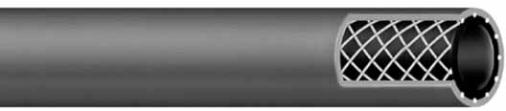

F5™
AIR HOSE
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
ORDER CODES:
For construction, manufacturing and other industries where flexibility, strength and durability
are required.
Blue Flexible TPE
Matte Blue Flexible TPE
Polyester fiber
40°F to 158°F (-40°C to 70°C)
750' reels or 50' coils
Example: F5™ 300psi Made in USA Goodyear ®.
MxM NPT for coupled assemblies
540-438 (blue)
Product Specifications
F5™ AIR HOSE
1/4 6.6 .50 11.5 300 2.07 0.06 0.09
3/8 9.8 .64 16.2 300 2.07 0.10 0.16
1/2 12.7 .81 20.0 300 2.07 0.16 0.24
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
