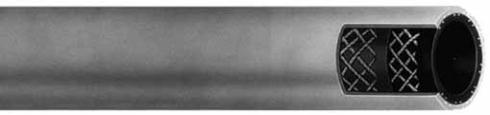

SERVICE
STATION AIR
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For general air line service stations, automobile repair shops, garages, etc.
Versigard® synthetic rubber, RMA Class C (Limited Oil Resistance)
Versigard synthetic rubber (red)
Spiral synthetic yarn
-40°F to 190°F (-40°C to 88°C)
500’ reels, maximum 3 pieces, 50’ increments
Example: Service Station Air Made in the USA Goodyear®.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
569-018
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
SERVICE STATION AIR
1/4 6.35 0.59 14.99 250 1.72 0.16 0.24
3/8 9.53 0.71 18.03 250 1.72 0.21 0.31
Product Specifications
