APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For tire inflation service from towers, reels, or curb connections.
Nitrile synthetic rubber, RMA Class B (medium/high oil resistance)
Red or Black nitrile synthetic rubber, abrasion- and oil-resistant, RMA Class B
(medium/high oil resistance)
Braided (1) steel wire braid
-20°F to 190°F (-29°C to 88°C)
500’ reels, maximum 3 pieces, 25’ minimum
Example: Goodyear® 1/4” Flexsteel ® Service Station Air. Made in USA.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
539-078 (red) 539-097 (black)

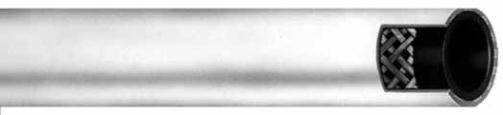

FLEXSTEEL®
SERVICE STATION AIR
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m..
FLEXSTEEL® SERVICE STATION AIR
1/4 6.4 0.61 15.5 250 1.72 0.18 0.28
3/8 9.5 0.72 18.3 250 1.72 0.23 0.34
Product Specifications
