ARCTIC
ORTAC ® PLUS
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
A low-temperature hose construction for air, water, oil, kerosene, fuel oil and some chemical
operations where temperatures fall as low as -65°F (-54°C).
Black low-temp, ECO oil-resistant synthetic rubber, RMA Class A (High Oil Resistance)
Black ultra-low temperature, ECO oil resistant synthetic rubber (with a blue stripe), RMA Class A
(High Oil Resistance)
One textile braid
-65°F to 180°F (-54°C to 82°C)
500’ reels, maximum 3 pieces, 50’ minimum length
Example: 9.5mm 3/8” Arctic Ortac® Plus 2.1 MPA/300 PSI Goodyear® Made in the U.S.A.
Contact fitting manufacturer for proper fitting recommendation and
coupling procedure.
Refer to page 303 for special production run minimum requirements.
536-275

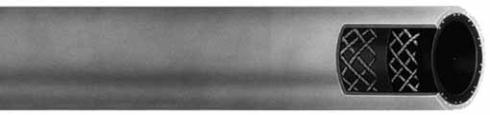

ARCTIC ORTAC® PLUS
Product Specifications
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m..
1/4 6.4 0.63 16.0 300 2.07 0.16 0.22
3/8 9.5 0.75 19.1 300 2.07 0.20 0.28
1/2 12.7 0.91 23.1 300 2.07 0.27 0.37
3/4 19.1 1.18 30.0 300 2.07 0.40 0.54
1 25.4 1.50 38.1 300 2.07 0.57 0.86
