AIR & MULTIPURPOSE
36
AIR &
MULTIPURPOSE
General Purpose
Heavy Duty
Push-on
CHEMICAL
TRANSFER
CLEANING
EQUIPMENT
FOOD
Transfer
Washdown
MARINE
MATERIAL
HANDLING
Abrasives
Bulk Transfer
Cement & Concrete
MINING
PETROLEUM
Aircraft Fueling
Dispensing
Dock
Transfer
SPRAY
STEAM
VACUUM
VEYANCE
WATER
Discharge
Suction &
Discharge
Washdown
WELDING
COUPLING
SYSTEMS
APPENDIX
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For low-pressure hydraulic and pneumatic systems such as shop air systems, general
industrial, maintenance and automotive assembly applications.
Chemivic
™
oil- and heat-resistant synthetic rubber, RMA Class A (High Oil Resistance)
Black, dyed textile braid, mildew- and oil-resistant
Braided (1) high-strength synthetic yarn laid at an angle for strength and coupling
holding ability
-40°F to 190°F (-40°C to 88°C)
500’ reels, maximum 4 pieces, 10’ minimum length
Example: Insta-Grip
™
TC 3/8” 300 psi WP. Made in USA Goodyear
®
.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
535-230

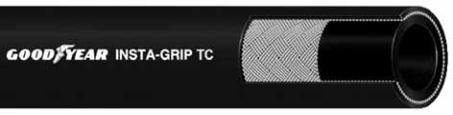

INSTA-GRIP
™
TC
ID
NOM. OD
MAX. WP
BEND RADIUS
WEIGHT
in.
mm.
in.
mm.
psi
Mpa
in.
mm.
lb./ft. kg./m.
INSTA-GRIP
™
TC
1/4
6.4
0.50
12.7
300
2.07
3
64
0.08
0.12
5/16
7.9
0.56
14.2
300
2.07
3
76
0.09
0.13
3/8
9.5
0.64
16.3
300
2.07
3
76
0.11
0.16
1/2
12.7
0.75
19.1
300
2.07
5
127
0.13
0.19
5/8
15.9
0.91
23.1
300
2.07
6
152
0.19
0.28
3/4
19.1
1.03
26.2
300
2.07
7
178
0.21
0.31
Product Specifications
