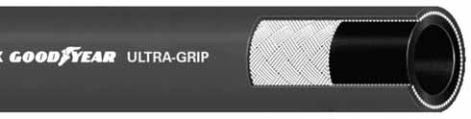

ULTRA-GRIP
™
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For use with push-on fittings at maximum working pressures of 400 psi. For low-pressure
hydraulic pneumatic systems such as robotics, shop air systems, general industrial, maintenance
and automotive assembly applications. Nonconductive, minimum electrical resistance greater
than one (1) megohm per inch of hose length at 1000 Volts DC. MSHA approved covers.
Chemivic
™
oil and heat-resistant synthetic rubber, RMA Class A (High Oil Resistance)
MSHA approved Black (USMSHA 2G-1C-14C/27). Blue, Gray, Green, Red, White, Brown, and
Yellow (USMSHA 2G-1C-14C/28) (others: contact customer service), weather-, abrasion-, and
oil-resistant Carbryn
™
rubber, RMA Class A (High Oil Resistance)
Braided (1) high-strength synthetic yarn laid at an angle for strength and coupling holding ability
-40°F to 200°F (-40°C to 93°C)
500’ reels, maximum 4 pieces, 10’ minimum length
Example: Ultra-Grip
™
Non-Conductive 3/8” 400 psi WP; Flame Resistant; USMSHA 2G-IC-14C/27
Made in USA. Goodyear
®
.
Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
Refer to page 303 for special production run minimum requirements.
535-283 (black)
535-284 (blue)
535-285 (gray)
535-286 (green)
535-289 (red)
535-290 (white)
535-292 (brown)
535-551 (yellow)
ID
NOM. OD
MAX. WP
BEND RADIUS
WEIGHT
in.
mm.
in.
mm.
psi
Mpa
in.
mm.
lb./ft. kg./m.
ULTRA-GRIP
™
3/16
4.8
0.36
9.1
400
2.76
3
64
0.04
0.06
1/4
6.4
0.51
13.0
400
2.76
3
64
0.08
0.12
3/8
9.5
0.67
17.0
400
2.76
3
76
0.13
0.19
1/2
12.7
0.76
19.3
400
2.76
5
127
0.14
0.21
5/8
15.9
0.93
23.6
400
2.76
6
152
0.19
0.28
3/4
19.1
1.06
26.9
400
2.76
7
178
0.26
0.37
1
25.4
1.34
34.0
400
2.76
8
203
0.34
0.51
Product Specifications
