If shipment on flat bed or single drop exceeds 40,000 lbs., shipment on low boy or bath tub exceeds 36,000 lbs. or shipment
exceeds listed maximum roll diameters, please contact customer service – 1-800-BELT-USA, or our Bowmanville, Ontario, Canada
facility at 1-800-263-7788 for additional charges.
Maximum Roll Diameters For Various Shipping Methods
SINGLE DROP:
122" (3.1m) Max. Roll Diameter
FLAT BED:
103" (2.6m) Max. Roll Diameter
VAN:
84" (2.1m) Max. Roll Diameter

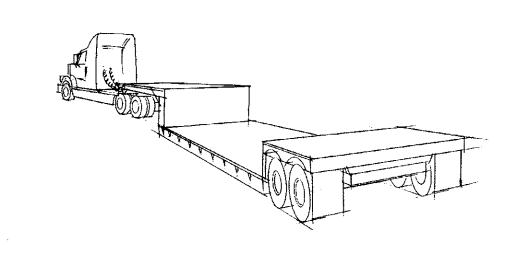

LOW BOY:
144" (3.6m) Max. Roll Diameter
BATH TUB:
152" (3.8m) Max. Roll Diameter
RAG TOP OR OPEN TOP:
101" (2.5m) Max. Roll Diameter
