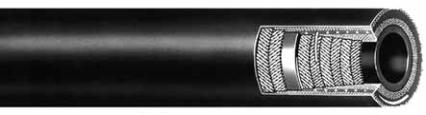

SMOOTH BORE
DOCK 200
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (SPIRAL):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For the transfer of petroleum based products between docks and ships under all types of service
conditions. It is available in a number of tube compounds to tailor the fluid handling capabilities
to a wide variety of petroleum and chemical compositions.
Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn ® tube for up to
100% aromatics.
Black Chemivic™ (smooth cover, wrap finish)
Spiral plied synthetic fabric with wire helix
-25°F to 200°F (-32°C to 93°C)
Chloroplast heavy-duty packaging
Example: Goodyear® SB Dock oil service, 200 psi WP Nitrile.
Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole
patterns, materials and floating flanges on request. Swage nipples are offered up to 10”.
Hose assembly is electrically continuous unless otherwise specified by customer.
Custom lengths available, contact customer service.
541-004 (Nitrile Tube) 541-586 (Flosyn® Tube)
ID NOM. OD MAX. WP BEND RADIUS VACUUM HG WEIGHT
in. mm. in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
SMOOTH BORE DOCK 200
3 76.2 4.25 108.0 200 1.38 18 457 29 737 4.50 6.70
4 101.6 5.29 134.4 200 1.38 24 610 29 737 6.15 9.15
6 152.4 7.45 189.2 200 1.38 36 914 29 737 11.27 16.77
8 203.2 9.62 244.4 200 1.38 48 1219 29 737 16.44 24.46
10 254.0 11.62 295.2 200 1.38 60 1524 29 737 21.21 31.56
12 304.8 13.94 354.1 200 1.38 72 1829 29 737 30.63 45.58
Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and
33 CFR 156.170.
Product Specifications
