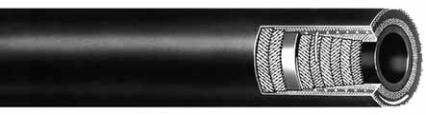

SMOOTH BORE
DOCK 300
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (SPIRAL):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For the transfer of petroleum based products between docks and ships under all types of service
conditions. It is available in a number of tube compounds to tailor the fluid handling capabilities
to a wide variety of petroleum and chemical compositions.
Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn
®
tube for up to
100% aromatics.
Black Wingprene
®
synthetic rubber
Spiral wire helix between plies of synthetic fabric
-25°F to 200°F (-32°C to 93°C)
Chloroplast heavy-duty packaging
Example: Goodyear
®
SB Dock oil service, 300 psi WP Nitrile.
Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole
patterns, materials and floating flanges on request. Swage nipples are offered up to 10”.
Hose assembly is electrically continuous unless otherwise specified by customer.
Custom lengths available, contact customer service.
541-580 (Nitrile Tube) 541-584 (Flosyn
®
Tube)
ID
NOM. OD
MAX. WP
BEND RADIUS VACUUM HG
WEIGHT
in. mm.
in. mm. psi Mpa
in.
mm.
in. mm. lb./ft. kg./m.
SMOOTH BORE DOCK 300
3
76.2
4.25 108.0
300
2.07
21
533
29
737
4.48
6.67
4
101.6
5.29 134.4
300
2.07
27
686
29
737
6.15
9.15
6
152.4
7.51 190.8
300
2.07
39
991
29
737
11.72 17.44
8
203.2
9.78 248.4
300
2.07
51
1295
29
737
17.93 26.68
10
254.0 11.77 299.0
300
2.07
63
1600
29
737
22.99 34.21
12
304.8 14.15 359.4
300
2.07
75
1905
29
737
33.29 49.54
Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and
33 CFR 156.170.
