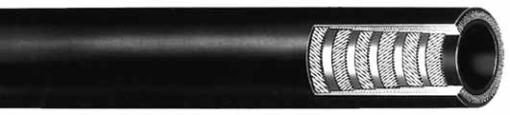

TANKER BARGE
DISCHARGE
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (SPIRAL):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For discharge applications such as the transfer of petroleum-based products between docks
and barges.
Nitrile synthetic rubber for up to 50% aromatics.
Black Wingprene® synthetic rubber
Spiral-plied synthetic fabric with grounding wires
-25°F to 220°F (-32°C to 104°C)
Chloroplast heavy-duty packaging
Example: Goodyear® Tanker Barge Discharge, 200 psi WP Nitrile.
Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole
patterns, materials and floating flanges on request. Swage nipples are offered up to 10”.
Hose assembly is electrically continuous unless otherwise specified by customer.
Custom lengths available, contact customer service.
541-426 (Nitrile tube) 541-427 (Flosyn ® tube)
Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and
33 CFR 156.170.
Product Specifications
ID NOM. OD MAX. WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
TANKER BARGE DISCHARGE
4 101.6 5.09 129.3 200 1.38 4.30 6.40
6 152.4 7.08 179.8 200 1.38 6.18 9.20
8 203.2 9.08 230.6 200 1.38 8.06 11.99
10 254.0 11.06 280.9 200 1.38 9.93 14.78
12 304.8 13.28 337.3 200 1.38 13.91 20.70
