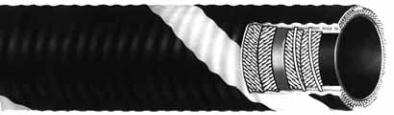

VAPOR
RECOVERY DOCK
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (SPIRAL):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For use in the recovery of petroleum vapors during the transfer of petroleum-based products
between docks and tankers or barges.
Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn ® tube for up to
100% aromatics.
Black Chemivic™ synthetic rubber (corrugated)
Synthetic fabric plies plus two (2) wire helix
-25°F to 200°F (-32°C to 93°C)
Chloroplast heavy-duty packaging
Example: Goodyear® Vapor Recovery 25 psi MWP.
Built-in nipples (or swaged fittings up to 10” ID) fitted with 150# flange with extra 5/8”
diameter hole located midway between flange bolt hole as per Coast Guard requirements.
Custom lengths available, contact customer service.
541-090 (Nitrile Tube) 541-643 (Flosyn® Tube)
ID NOM. OD MAX. WP BEND RADIUS VACUUM HG WEIGHT
in. mm. in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
VAPOR RECOVERY DOCK
6 152.4 6.86 174.2 25 0.17 22 559 29 737 5.70 8.48
8 203.2 8.89 225.8 25 0.17 30 762 29 737 8.26 12.29
10 254.0 10.97 278.6 25 0.17 40 1016 29 737 12.63 18.80
12 304.8 13.00 330.2 25 0.17 60 1524 29 737 15.07 22.43
Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and
33 CFR 156.170.
Product Specifications
