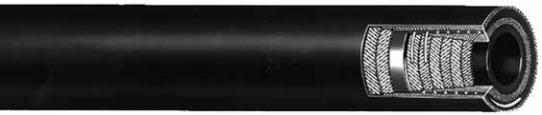

THOR™
SUBMARINE
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING (IMPRESSION):
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
For the transfer of petroleum products between docks and tankers when the hose is partially or
completely submerged. It is rated at 250 psi (1.73 Mpa) maximum working pressure.
Nitrile synthetic rubber
1/4” Black Plioflex ® synthetic rubber
Spiral wire helix between plies of synthetic fabric
-25°F to 180°F (-32°C to 82°C)
Heavy-duty plastic packaging
Example: Goodyear® SB Submarine oil service, Nitrile 225 psi WP.
Coupled with galvanized built-in steel nipple/150#RFSO flanges. Available in other bolt hole
patterns, materials and floating flanges on request. Hose assembly is electrically continuous
unless otherwise specified by customer.
Custom lengths available, contact customer service.
541-577
Product Specifications
ID NOM. OD MAX. WP BEND RADIUS WEIGHT
in. mm. in. mm. psi Mpa in. mm. lb./ft. kg./m.
THOR™ SUBMARINE
6 152.4 7.81 198.4 250 1.72 36 914 14.30 21.28
8 203.2 9.89 251.2 250 1.72 48 1219 20.05 29.84
10 254.0 12.07 306.6 250 1.72 60 1524 27.23 40.52
12 304.8 14.10 358.1 250 1.72 72 1829 31.93 47.52
Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and
33 CFR 156.170.
