HOT TAR &
ASPHALT
APPLICATION:
CONSTRUCTION

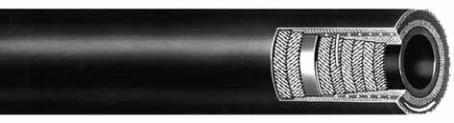

TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
Designed for petroleum-based products up to 350°F between docks and tankers or barges under
heavy-duty conditions.
Nitrile synthetic rubber, flat steel wire helix supporting the tube
Wingprene® synthetic rubber
Spiral-plied synthetic fabric with wire helix
-25°F to 350°F (-32°C to 177°C)
Custom lengths available, contact customer service.
Example: Goodyear® RB Dock hot asphalt, 350°F, 225 psi max.
Coupled with galvanized built-in steel nipple/150#RFSO flanges. Available in other bolt hole
patterns, materials and floating flanges on request. Smooth bore assembly is electrically
continuous unless otherwise specified by customer. Rough bore assembly is offered as
electrically continuous only.
Custom lengths available, contact customer service.
ID NOM. OD MAX. WP BEND RADIUS VACUUM HG WEIGHT
in. mm. in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
ID NOM. OD MAX. WP BEND RADIUS VACUUM HG WEIGHT
in. mm. in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
SMOOTH BORE
ROUGH BORE
4 101.6 5.28 134.1 225 1.55 36 914 29 737 6.48 9.64
6 152.4 7.72 196.1 225 1.55 48 1219 29 737 13.83 20.58
8 203.2 9.80 248.9 225 1.55 60 1524 29 737 19.11 28.44
10 254.0 11.80 299.7 225 1.55 80 2032 29 737 23.20 34.52
6 152.4 8.19 208.0 225 1.55 36 914 29 737 16.19 24.09
8 203.2 10.25 260.4 225 1.55 48 1219 29 737 22.39 33.32
10 254.0 12.31 312.7 225 1.55 60 1524 29 737 29.09 43.29
Product Specifications
ORDER CODES:
ORDER CODES:
541-606
541-582
