Food & Beverage
TITANFLEX®
Food Suction Hose
Nitrile Tube
FDA, PMO, USDA, 3-A

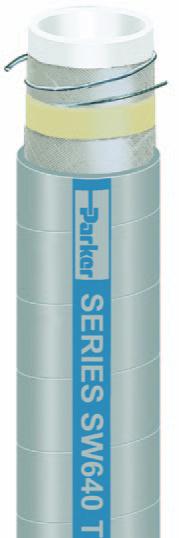

Series SW640
Series SW640 is an extremely fexible, kink resistant suction and discharge hose designed
to handle dry materials, fatty and oily foods, liquids, sanitary products and potable water in
a variety of transfer applications. Te hose is manufactured using polished stainless steel
mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor. Te tube
cleans easily with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0
bar). Te lightweight construction incorporates a dual wire helix that provides full suction
capability, kink resistance and a path to conduct a static electrical charge to ground. Te
nitrile cover is resistant to abrasion and oil.
Tube: White nitrile
Reinforcement: Multiple textile plies with dual wire helix
Cover: Gray nitrile; wrapped fnish
Temp. Range: -20°F to +225°F (-29°C to +107°C)
Brand Method: Gray text on blue stripe
Brand Example: PARKER SERIES SW640 TITANFLEX® NITRILE FOOD SUCTION
MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) XXX PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Fatty and oily foods, liquids, milk, potable water, sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW640-1500 1-1/2 38.1 2 2.000 50.8 0.95 0.43 5.0 127.0 250 17.2 * 100 N
SW640-2000 2 50.8 2 2.500 63.5 1.29 0.59 6.0 152.4 250 17.2 * 100 N
SW640-2500 2-1/2 63.5 2 3.000 76.2 1.58 0.72 7.0 177.8 200 13.8 * 100 N
SW640-3000 3 76.2 2 3.625 92.1 2.05 0.93 8.0 203.2 200 13.8 * 100 N
SW640-4000 4 101.6 2 4.688 119.1 3.14 1.42 11.0 279.4 200 13.8 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
