Food & Beverage
Food Suction Hose
Nitrile Tube
FDA, PMO, USDA, 3-A

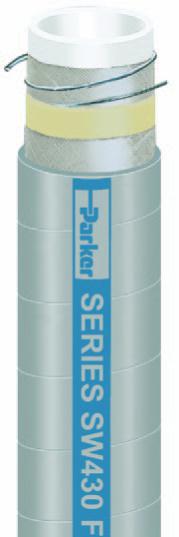

Series SW430
Series SW430 is a suction and discharge hose designed to handle fatty and oily foods,
liquids, sanitary products and potable water in a variety of transfer applications. Te hose
is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-
free tube that will not impart taste or odor. Te tube cleans easily with 10% alkali bath, hot
water, or open-end low pressure steam to 15 psi (1.0 bar). Te lightweight construction
incorporates a dual wire helix that provides full suction capability, kink resistance and a
path to conduct a static electrical charge to ground. Te nitrile cover is resistant to abrasion
and oil.
Tube: White nitrile
Reinforcement: Multiple textile plies with dual wire helix
Cover: Gray nitrile; wrapped fnish
Temp. Range: -20°F to +225°F (-29°C to +107°C)
Brand Method: Gray text on blue stripe
Brand Example: PARKER SERIES SW430 FOOD GRADE SUCTION & DISCHARGE HOSE
MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) 150 PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Fatty and oily foods, liquids, milk, potable water, sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW430-1500 1-1/2 38.1 2 2.125 54.0 1.01 0.46 6.0 152.4 150 10.3 * 100 Y
SW430-2000 2 50.8 2 2.625 66.7 1.41 0.64 7.0 177.8 150 10.3 * 100 Y
SW430-2500 2-1/2 63.5 2 3.188 81.0 1.89 0.86 8.0 203.2 150 10.3 * 100 N
SW430-3000 3 76.2 2 3.688 93.7 2.39 1.08 9.0 228.6 150 10.3 * 100 Y
SW430-4000 4 101.6 2 4.813 122.2 3.59 1.63 12.0 304.8 150 10.3 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
