Oil Field
Mud Discharge Hose

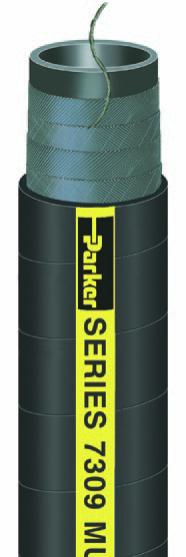

Series 7309
Series 7309 is a heavy duty, high pressure discharge hose designed to handle drilling mud,
mild chemicals, petroleum waste and water. Te hose construction incorporates a heavy
wall for durability and a static wire as a path to conduct a static electrical charge to ground.
Te cover is resistant to abrasion, heat, mild chemicals and weathering. Series 7309 is
available in 200-foot continuous lengths.
Tube: Black nitrile; ARPM Class A oil resistance
Reinforcement: Multiple textile plies with static wire
Cover: Black chloroprene; wrapped fnish
Temp. Range: -20°F to +180°F (-28°C to +82°C)
Brand Method: Black text on yellow stripe
Brand Example: PARKER SERIES 7309 MUD HOSE 300 PSI MAX WP MADE IN USA
Design Factor: 4:1
Industry Standards: ARPM Class A oil resistant tube
Applications: • Drilling mud, mild chemicals, oil, water
• General industrial, oil feld
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7309-2000 2 50.8 4 2.764 70.2 1.75 0.79 24.0 609.6 300 20.7 * 100 N
7309-3000 3 76.2 4 3.835 97.4 2.67 1.21 36.0 914.4 300 20.7 * 100 N
7309-4000 4 101.6 4 4.898 124.4 3.58 1.62 48.0 1219.2 300 20.7 * 100 Y
7309-5000 5 127.0 4 5.937 150.8 4.61 2.09 60.0 1524.0 300 20.7 * 100 N
7309-6000 6 152.4 6 7.087 180.0 6.28 2.85 72.0 1828.8 300 20.7 * 100 Y
7309-8000 8 203.2 6 9.250 233.2 8.84 4.01 96.0 2438.4 300 20.7 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
