Oil Field
Mud Suction Hose
Series TKW160
CustomMade Hose

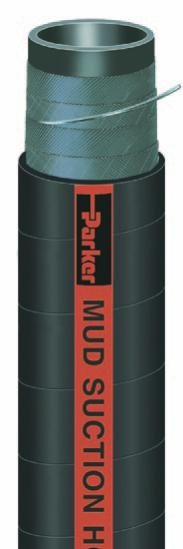

Series TKW160 is a large diameter suction and discharge hose designed to handle drilling
mud, mild chemicals, oily water, petroleum waste and sewage in oil feld applications
such as a fexible, vibration-dampening connection between the slush pump and mud pit
during rotary well drilling. Te hose construction incorporates a wire helix that provides
full suction capability, kink resistance, and a path to conduct a static electrical charge to
ground. Te cover is resistant to abrasion, oil and weathering.
NOTE: Other customized versions of this product are available. Contact Parker.
Tube: Black nitrile
Reinforcement: Multiple textile plies with wire helix
Cover: Black synthetic rubber; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on red stripe
Brand Example: PARKER MUD SUCTION HOSE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Drilling mud, mild chemicals, oily water, petroleum waste, sewage
• General industrial, oil feld
Vacuum: Full
Packaging: Coils; straight lengths in bales or slat packs
Couplings: Plain ends or ends per customer specifcation
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
TKW160-4000 4 101.6 4 5.000 127.0 4.7 2.13 24.0 609.6 100 7.0 100
TKW160-6000 6 152.4 4 7.125 181.0 8.5 3.90 36.0 914.4 100 7.0 100
TKW160-8000 8 203.2 4 9.250 235.0 12.8 5.81 48.0 1219.2 100 7.0 100
TKW160-10000 10 254.0 4 11.375 288.9 19.5 8.85 60.0 1524.0 100 7.0 50
TKW160-12000 12 304.8 4 13.375 339.7 24.8 11.25 72.0 1828.8 100 7.0 50
