PVC
NEXVA T EVA Tubing
RoHS (Series 440 Only)
Series 439 (Black) and Series 440 (Natural)
Series 439/440 Ethyl Vinyl Acetate (EVA) tubing is designed as a lightweight,
medium pressure tubing for abrasive materials, herbicides, mild chemicals,
pesticides and water. Te tubing construction is resistant to abrasion, mild
chemicals, ultraviolet light and weathering, and is available in black or natural
colors.
Tube:
Series 439:
Black EVA
Series 440:
Natural EVA
Reinforcement:
None
Cover:
None
Temp. Range:
-50°F to +125°F (-45°C to +52°C)
Working pressures are at +68°F (+20°C). Higher temperatures
reduce the available working pressure. See temperature/
pressure chart on page 445.
Brand Method:
Series 439:
White ink
Series 440:
Black ink
Brand Example:
Series 439:
NEXVA “T” BY PARKER NEXGEN
®
(P/N) (ID X OD)
MAX WP XX PSI AT 68F (20C) CANADA (DATE CODE)
Series 440:
NEXVA “T” EVA TUBING BY PARKER NEXGEN
®
(ID X OD) MAX WP XX PSI AT 68F (20C) CANADA (DATE CODE)
Design Factor:
3:1
Industry Standards:
RoHS (Series 440 only)
Applications:
• Abrasive materials, anhydrous ammonia, herbicides, mild
chemicals, pesticides, water
• Ammonia applicators, seed insertion, sight gauges
• Agriculture, general industrial, lawn and garden
Vacuum:
Light
Packaging:
Coils
WARNING!
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
!
!

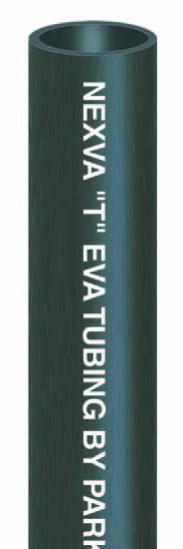

Series 439 (Black)
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
439-14188200
7/8
22.2
1.125
28.6
0.16
0.07
100
7.0
200
N
439-16008100
1
25.4
1.250
31.6
0.18
0.08
75
5.2
100
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

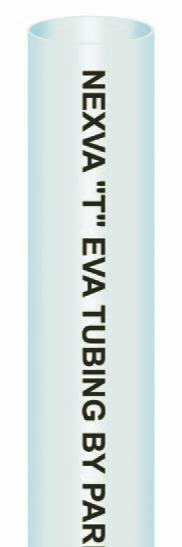

Series 440 (Natural)
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
440-06080300
3/8
9.5
0.500
12.7
0.03
0.02
75
5.2
300
N
440-06100300
3/8
9.5
0.625
15.9
0.08
0.04
125
8.6
300
N
440-06100501
3/8
9.5
0.625
15.9
0.08
0.04
125
8.6
500
N
440-08100300
1/2
12.7
0.625
15.9
0.04
0.02
70
4.8
300
N
440-08120300
1/2
12.7
0.750
19.1
0.10
0.05
125
8.6
300
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
!
!
