PVC
NEXSYN

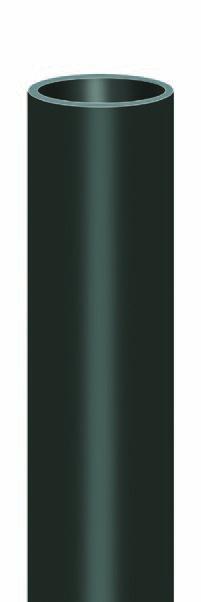

G55 General Purpose EPDM/ TPV Tubing
Series 709
Series 709 tubing is extruded to close tolerances using specially designed thermoplastic
vulcanizate (TPV) materials that perform like EPDM rubber. Te mechanical and
recovery properties are comparable to most vulcanized elastomers and superior to most
thermoplastic elastomers. Series 709 is 25–35% lighter than PVC and rubber tubing of
the same dimensions. Tis highly durable tubing is resistant to fex fatigue, ozone and
ultraviolet light, and has excellent resistance to a wide range of mild acids, alkalis and
chemicals.
Tube:
Black EPDM / TPV; 65A durometer
Temp. Range:
-75°F to +180°F (-60°C to +82°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Industry Standards:
None applicable
Applications:
• Mild acids, alkalis, chemicals; water
• Drain lines, handle grips, light vacuum, peristaltic pumps
Vacuum:
Light
Packaging:
Cartons; coils
Part
Number
ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
709-03068102
3/16 4.8 0.094 0.2
3/8
9.5 3.50 1.60 40
2.8 100
N
709-04078102
1/4
6.4 0.094 0.2 7/16 11.1 4.30 2.00 40
2.8 100
N
709-06098102
3/8
9.5 0.094 0.2 9/16 14.3 5.60 2.50 35
2.4 100
N
709-08128102
1/2 12.7 0.125 0.3
3/4 19.1 10.40 4.70 35
2.4 100
N
709-10148102
5/8 15.9 0.125 0.3
7/8 22.2 12.50 5.70 30
2.1 100
N
709-12168100
3/4 19.1 0.125 0.3
1
25.4 14.80 6.60 30
2.1 100
N
709-14188100
7/8 22.2 0.125 0.3 1-1/8 28.6 17.00 7.70 30
2.1 100
N
709-16208100
1
25.4 0.125 0.3 1-1/4 31.8 18.70 8.50 25
1.7 100
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNING!
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
