ADAPTSIL
We recommend ADAPTSIL® adaptors to con-
vey fluids in the Food, Pharm and Biotech
industries.
These adaptors are FDA approved, made out of
USP class VI/platinum cured silicone and meet
all the certifications required in these industries.
The fittings are made of 316 L Stainless Steel
and crimped according to SZR® (non retention
zone system). The standard fittings are SMS,
DIN and sanitary TRI-CLAMP but others are
available upon request.
The hoses offer 7 different standard geometrical
configurations but we can customly make any
piece according to the customer’s needs. The-
se products can be vulcanized, sterilized and
Cleaned in Place (CIP) with steam or any other
common product (caustic soda, 4% diluted acid,
etc.)
We recommend ADAPTSIL® to:
• Compensate system vibrations as well
as to optimize the overall life of the hose
or tube connections.
• Solve handling system miss-alignments
as well as increased ease in hose or tube
installation.
• Offer sound dampening characteristics
in your process systems due to its elastic
and flexible construction.
*This product is also available with an inner layer of
FKM

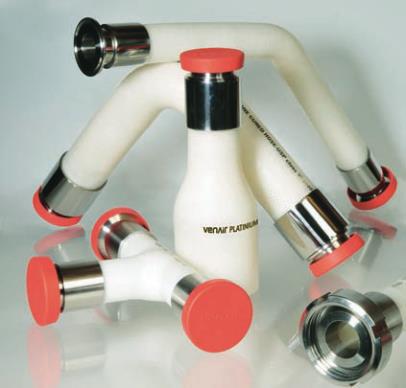

The first line of flexible adaptors
in silicone designed for the Food,
Pharmand Biotech industries.
CROSS-SHAPE CL/CL
45º ELBOW CL/CL
90º ELBOW CL/CL
90º ELBOW REDUCER CL/CL
mm
L1
L
Ø3/8’’
10 4 1/2
115
9 7/8
252
Ø1/2’’
13 4 1/2
115
10
255
Ø1’’
25 4 3/4
120
10 7/8
277
Ø1 1/4’’
32 4 3/4
120
11 1/8
284
Ø1 1/2’’
38 4 3/4
120
11 3/8
290
Ø2’’
51 4 1/2
115
11 1/2
293
Ø2 1/2’’
63 4 3/4
120
12 3/8
315
Ø3’’
76 4 7/8
125
13 1/4
338
Ø4’’
102 4 3/4
120
13 7/8
354
mm L1
L2
R
Ø3/8’’
10 4 3/8 111 4 3/8 111 5/8 15
Ø1/2’’
13 4 1/2 113 4 4/8 113 6/8 20
Ø1’’
25 4 7/8 125 4 7/8 125 1 1/2 38
Ø1 1/4’’
32 4 7/8 125 4 7/8 125 1 5/8 40
Ø1 1/2’’
38 5
127
5 127 1 3/4 45
Ø2’’
51 5 1/4 134 5 1/4 134 3
75
Ø2 1/2’’
63 5 5/8 144 5 5/8 144 3 1/2 90
Ø3’’
76 6 1/8 155 6 1/8 155 4 1/8 105
Ø4’’
102 6 5/8 167 6 5/8 167 5 7/8 150
mm L1
L2
R
Ø3/8’’
10 4 3/4 120 4 3/4 120 5/8 15
Ø1/2’’
13 4 7/8 125 4 7/8 125 3/4 20
Ø1’’
25 5 7/8 148 5 7/8 148 1 1/2 38
Ø1 1/4’’
32 5 7/8 150 5 7/8 150 1 5/8 40
Ø1 1/2’’
38 6 1/8 155 6 1/8 155 1 3/4 45
Ø2’’
51 7 1/8 180 7 1/8 180 3
75
Ø2 1/2’’
63 7 7/8 200 7 7/8 200 3 1/2 90
Ø3’’
76 8 5/8 220 8 5/8 220 4 1/8 105
Ø4’’
102 10 1/4 260 10 1/4 260 5 7/8 150
mm
L1
L2
R
Ø1/2’’-3/8’’ Ø13/10 4 7/8 125 4 7/8 125 6/8 20
Ø1’’-1/2’’
Ø25/13 5 3/4 147 5 5/8 142 1 1/2 37
Ø1 1/4’’-1’’ Ø32/25 6 1/4 160 6 1/4 160 2
50
Ø1 1/2’’-1’’ Ø38/25 6 1/4 160 6 1/4 160 2
50
Ø1 1/2-1 1/4’’ Ø38/32 6 1/4 160 6 1/4 160 2
50
Ø2’’-1’’
Ø51/25 7 1/8 180 7 1/4 185 3
75
Ø2’’-1 1/2’’ Ø51/38 7 1/8 180 7 1/8 180 3
75
Ø2 1/2-1 1/2’’ Ø63/38 8 1/4 210 8 1/8 205 3 6/8 95
Ø2 1/2’’-2’’ Ø63/51 8 1/4 210 7 7/8 200 3 6/8 95
Ø3’’-2’’
Ø76/51 8 1/2 215 8 2/8 210 4 1/8 105
Ø3’’-2 1/2’’ Ø76/63 8 1/2 215 8 5/8 220 4 1/8 105
Ø4’’-3’’
Ø102/76 10 1/4 260 10 2/8 260 5 7/8 150
Y-SHAPE CL/CL
TEE-SHAPE CL/CL
mm
L1
L2
Ø3/8’’
10 4 1/8
105
4 1/2
115
Ø1/2’’
13 4 1/8
105
4 1/2
115
Ø1’’
25 4 3/8
110
4 3/4
120
Ø1 1/4’’
32 4 3/8
110
4 3/4
120
Ø1 1/2’’
38 4 3/8
110
4 3/4
120
Ø2’’
51 4 1/8
105
4 1/4
115
Ø2 1/2’’
63 4 3/8
110
4 3/4
120
Ø3’’
76 4 1/2
115
4 7/8
125
Ø4’’
102 4 3/8
110
4 3/4
120

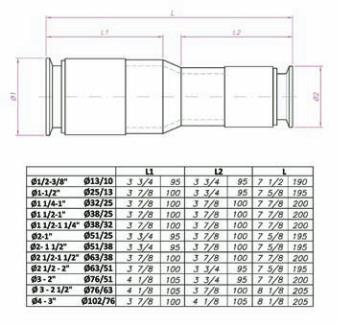

STRAIGHT REDUCER CL/CL
mm
L1
L2
R
Ø1/2’’-3/8’’ Ø13/10 3 3/4 95 3 3/4 95 7 1/2 190
Ø1’’-1/2’’
Ø25/13 3 7/8 100 3 3/4 95 7 5/8 195
Ø1 1/4’’-1’’ Ø32/25 3 7/8 100 3 7/8 100 7 7/8 200
Ø1 1/2’’-1’’ Ø38/25 3 7/8 100 3 7/8 100 7 7/8 200
Ø1 1/2-1 1/4’’ Ø38/32 3 7/8 100 3 7/8 100 7 7/8 200
Ø2’’-1’’
Ø51/25 3 3/4 95 3 7/8 100 7 5/8 195
Ø2’’-1 1/2’’ Ø51/38 3 3/4 95 3 7/8 100 7 5/8 195
Ø2 1/2-1 1/2’’ Ø63/38 3 7/8 100 3 7/8 100 7 7/8 200
Ø2 1/2’’-2’’ Ø63/51 3 7/8 100 3 3/4 95 7 5/8 195
Ø3’’-2’’
Ø76/51 4 1/8 105 3 3/4 95 7 7/8 200
Ø3’’-2 1/2’’ Ø76/63 4 1/8 105 3 7/8 100 8 1/8 205
Ø4’’-3’’
Ø102/76 3 7/8 100 4 1/8 105 8 1/8 205
11
mm
L1
L
Ø3/8’’
10 4 1/2
115
9 7/8
252
Ø1/2’’
13 4 1/2
115
10
255
Ø1’’
25 4 3/4
120
10 7/8
277
Ø1 1/4’’
32 4 3/4
120
11 1/8
284
Ø1 1/2’’
38 4 3/4
120
11 3/8
290
Ø2’’
51 4 1/2
115
11 1/2
293
Ø2 1/2’’
63 4 3/4
120
12 3/8
315
Ø3’’
76 4 7/8
125
13 1/4
338
Ø4’’
102 4 3/4
120
13 7/8
354
