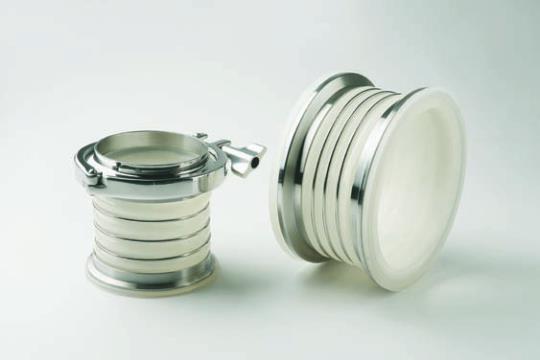

PHARMALOADER
The Pharmaloader® is a flexible compensator for the pharmaceu-
tical and food industries. Made from platinum-catalysed silicone, it
complies with the requirements of the FDA 21 CFR 177.2600 and
BfR part XV and USP class VI standards.
It is made with polyester reinforcements between the silicone la-
yers. To obtain the correct elastic compensation, it is fitted with 3
stainless steel rings, which also prevent volumetric expansion.
This product is a standard element fitted with molded Tri-Clamp
seals on the ends of the compensator.
The counter-flange elements are made from INOX 304L steel. It
is the ideal solution for all tank, hopper, pump and weighing tank
outlets to compensate vibrations and level differences.
Autoclavable and sterilisable, the Pharmaloader® can work at a
temperature range of between -50ºC and 180ºC (-76ºF / 356ºF).
*This product is also available with an inner layer of FKM
Nominal
Clamp Inner Ø Overall
Lenght
Working
Pressure
Clamp Ø Head Ø
(inch)
(mm)
(mm)
(inches)
(mm)
(bar)
(psi)
1’’
50,5
22,1
4’’
102
1,00
14
1 1/2’’
50,5 34,7
4’’
102
0,90
13
2’’
64
47,5
4’’
102
0,80
11
2 1/2’’
77,5
60
4’’
102
0,70
10
3’’
91
73
6’’
152
0,60
8
4’’
119
97,6
6’’
152
0,50
7
5’’
155
125
7’’
178
0,40
5
6’’
183
150
7’’
178
0,35
5
8’’
233,5 200
7’’
178
0,20
3
10’’
270
250
8’’
204
0,10
1

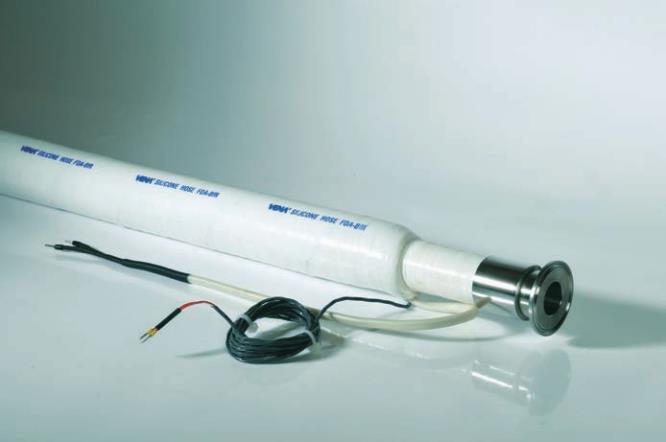

HEATED HOSES
Characteristics
Silicone hose equipped with an electrical resistance encased
inside the wall in order to provide a regular temperature to the
hose for an optimum fluidity of the conveyed product.
Inner cable is connected to an electronic regulator and is also
equipped with a PT 100 Ohm gauge connected to the regulator
through a cooled end.
Voltage
Depending on specific user needs.
Temperature
+5ºC / +150ºC (+41ºF / +302ºF) - Polyester fabric
+5ºC / 200ºC (+41ºF / +392ºF) - Aramide fabric
Main applications
To convey viscous products that needs to maintain a regular
temperature during the production process, such as caramel,
glycerin or chocolate.
