Goodyear Rubber Products

ContiTech Hose

Name: ContiTech Hose
Brand: Goodyear Rubber Products
Availability: InStock

Quote Cart: 0 item(s) | View Quote Cart

Pliovic®

Product Specifications

Application

A lightweight, economical general purpose hose for carrying air, water and many spray solutions, Pliovic® is suitable for a wide range of industrial, construction, agricultural hand sprayers and many multipurpose applications Nonconductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC Available in Pliovic® GS construction or a thick cover, Pliovic® Plus construction Non-marking cover

Construction
>Tube

Black Pliovic®, ARPM Class B (Medium Oil Resistance)

> Cover

Pliovic®, smooth finish, ARPM Class B (Medium Oil Resistance)

> Reinforcement

Spiral synthetic yarn

Temperature Range

–10°F to 158°F (–23°C to 70°C) for GS and Plus 250

Packaging

1/4”–1/2” – 750” reels, maximum 3 pieces, 50” increments
5/8”– 500” reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 only)
3/4” – 450’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 only)
1” – 400’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 only)
1¼” –2” – 300’ reels, maximum 3 pieces, 50’ increments (Pliovic® Plus 250 only)
Contact hose marketing for availability on cut, coiled and tied hose lengths

Branding

Example: Pliovic® GS 3/8” ID (9 5mm) 250 psi WP Made in USA Continental ContiTech

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure

Coupled assemblies available

Order Codes

See next page

Pliovic® GS

Order Codes: 540-350 (blue), 540-357 (yellow), 540-472 (black), 540-358 (green), 540-406 (red)

SAP #					ID		Nom. OD		Max. WP		Weight
Blue	Red	Yellow	Black	Green	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20160220	20129505	20629533		20645372	1/4	6.4	0.45	11.4	300	2.07	0.06	0.09
20566773	20129506	20129502	20566772		5/16	7.9	0.59	15.0	300	2.07	0.11	0.16
20371442	20129507	20129503	20351772	20645373	3/8	9.5	0.60	15.2	300	2.07	0.09	0.13
	20129508	20129504	20352500	20352636	1/2	12.7	0.78	19.8	300	2.07	0.15	0.22

Hose design ratio (burst pressure) 4:1.

Pliovic® Plus 250

Order Codes: 540-201 (red), 540-227 (blue), 540-232 (green), 540-233 (black), 540-257 (yellow)

SAP #					ID		Nom. OD		Max. WP		Weight
Blue	Red	Green	Black	Yellow	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20012644	20012588	20012688	20012696	20012742	1/4	6.4	0.50	12.7	250	1.72	0.08	0.12
20012651	20012594	20012689	20012700	20012746	3/8	9.5	0.66	16.8	250	1.72	0.13	0.19
20012668	20012605	20012691	20012703	20012755	1/2	12.7	0.81	20.6	250	1.72	0.17	0.25
20012677	20012609	20012692	20012704	20753492	5/8	15.9	0.94	23.9	250	1.72	0.20	0.30
20012678	20012610	20012694	20012705	20012756	3/4	19.1	1.11	28.2	250	1.72	0.28	0.42
20012680	20012615	20012695	20012707	20012758	1	25.4	1.38	35.1	200	1.38	0.37	0.55

Hose design ratio (burst pressure) 4:1.

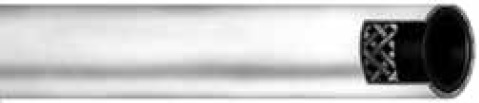

Braidair™

Product Specifications

Application

A quality braided general purpose hose for industrial service, compressor lines, pneumatic tools, water service and lowpressure spray where the need for oil resistance is moderate

Construction
>Tube

Black synthetic, ARPM Class A (High Oil Resistance)

> Cover

Red synthetic, ARPM Class B (Medium Oil Resistance)

> Reinforcement

One braided synthetic yarn

Temperature Range

–20°F to 210°F (–29°C to 99°C)

Packaging

1/4”–1" – 400–750’ reels, maximum 3 pieces, 50’ minimum
1¼”–1½;&rdquo – 300’ reels, maximum 3 pieces, 50’ minimum
2” – 150–250’ carton, maximum 2 pieces, 50’ minimum

Branding

Example: Continental ContiTech Braidair™ 300 psi WP (20 bar) 3/8” (9.5 mm)

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

Coupled assemblies available

Order Codes

536–421 (2”)
536–422 (1/4” – 1½”)

Braidair™

SAP #	ID		Nom. OD		Max. WP		Weight
Red	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20023152	1/4	6.4	0.55	14.0	300	2.07	0.11	0.16
20023157	3/8	9.5	0.72	18.3	300	2.07	0.18	0.26
20023161	1/2	12.7	0.85	21.6	300	2.07	0.21	0.31
20023163	3/4	19.1	1.13	28.7	300	2.07	0.32	0.48
20023166	1	25.4	1.47	37.3	300	2.07	0.50	0.74
20023168	1¼	31.8	1.80	45.7	300	2.07	0.75	1.12
20023169	1½	38.1	2.09	53.1	300	2.07	1.00	1.49
20023151	2	50.8	2.50	63.5	200	1.38	1.09	1.62

Hose design ratio (burst pressure) 4:1.

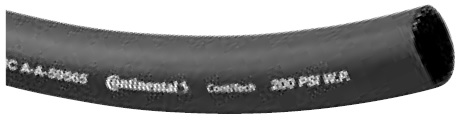

MIL A–A–59565 Military Air Hose

Product Specifications

Application

This commercial item description (CID) covers rubber hose and rubber hose assemblies with yarn, cord or fabric reinforcement intended for light duty air applications. The General Services Administration has authorized the use of this commercial item description for all federal agencies.

Construction
>Tube

EPDM, ARPM Class C (Limited Oil Resistance)

> Cover

EPDM, ARPM Class C (Limited Oil Resistance)

> Reinforcement

spiral synthetic cord, 1/4" ID through 5/8" ID
4-spiral synthetic cord, 3/4" ID through 1e" ID

Temperature Range

-40°F to 210°F (-40°C to 99°C)

Packaging

Bulk reels (alternative packaging specs available upon request).

Branding

Example: Pneumatic A-A-59565 Continental ContiTech 200 psi WP

Couplings

Contact fitting manufacturer for proper fitting
recommendation and coupling procedure.

Coupled assemblies available

Order Codes

569-536

MIL A-A-59565 Military Air Hose

SAP #	Size	ID		Nom. OD		Max. WP		Weight
Black	Code	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20026886	04	1/4	6.4	0.55	13.9	200	1.38	0.10	0.15
20026893	06	3/8	9.5	0.75	19.1	200	1.38	0.17	0.25
20697646	07	7/16	11.1	0.83	21.2	150	1.03	0.21	0.31
20026900	08	1/2	12.7	0.87	22.2	150	1.03	0.21	0.31
20100167	12	3/4	19.1	1.14	29.0	125	0.86	0.35	0.52
20026909	16	1	25.4	1.52	38.5	125	0.86	0.58	0.86

Hose design ratio (burst pressure) 4:1.

Add to Quote Cart

Applications

ContiTech Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.

Materials Overview

Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.

Selection Guidance

Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.

Installation and Maintenance Notes

Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.

Industries Served

Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.

Technical Specifications

Existing Technical Claim (Verbatim)
1 megohm per inch of hose length at 1000 volts DC Available in Pliovic® GS construction or a thick cover, Pliovic
10°F to 158°F (–23°C to 70°C) for GS and Plus 250 Packaging 1/4”–1/2” – 750” reels, maximum 3 pi
540-350 (blue), 540-357 (yellow), 540-472 (black), 540-358 (green), 540-406 (red) SAP # ID Nom.
250 Order Codes: 540-201 (red), 540-227 (blue), 540-232 (green), 540-233 (black), 540-257 (yellow) SAP # ID Nom.
20°F to 210°F (–29°C to 99°C) Packaging 1/4”–1" – 400–750’ reels, maximum 3 pieces, 50’ mi
150–250’ carton, maximum 2 pieces, 50’ minimum Branding Example: Continental ContiTech Braidair™ 300 psi WP (20 bar) 3/8” (9.
5 mm) Couplings Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
536–421 (2”) 536–422 (1/4” – 1½”) Braidair™ SAP # ID Nom.
59565 Continental ContiTech 200 psi WP Couplings Contact fitting manufacturer for proper fitting recommendation and coupling procedure.
569-536 MIL A-A-59565 Military Air Hose SAP # Size ID Nom.
