Goodyear Conquest Belt

Javascript DHTML Drop Down Menu Powered by dhtml-menu-builder.com

DESCRIPTION:
This rugged, fabric-reinforced conveyor belt withstands high abuse applications. It's made with a revolutionary patented Triple-Warp·weave design, holds up to the most demanding applications, and delivers up to three times longer life, proving Conquest provides a lower cost-per-ton with unsurpassed system savings.

Markets:
• Aggregate
• Cement
• Coal
• Foundry
• Hard Rock
• Pulp and Paper
• Steel Production
• Wood Products

Applications:
• Log Debarkers
• Log Decks
• Mainlines
• Pit Belts
• Primary Crushers
• Secondary Crushers
• Ship Unloaders
• Trash and Recycling
• Any High Abuse Applications


Cover Compounds:
• Defender
• Stacker
• Survivor

Features & Benefits

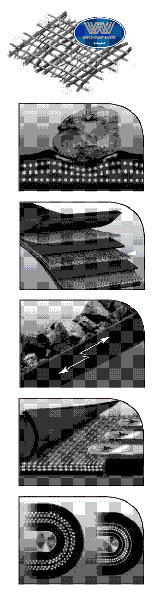

Patented polyester/nylon Triple-Warp@weave
The heavy Triple-Warp weave center ply is sandwiched between flexible / abuse-resistant outer plies. Conquest belts from Goodyear Engineered Products are strong and provide a better overall value than multi-ply and straight-warp fabric consructions in high abuse applications.

Tested for impact resistance
Loading point impact damage can be a major cause of belt failure. Goodyear EP's design engineers use an enhanced Dynamic Impact Tester to simulate loading impact force and its effects on belting. Conquest provides better impact resistance than plain weave constructions with equivalent PIW rating.

High transverse tear strength
The Triple-Warp fabric design incorporates extremely high transverse tear
strength. This minimizes tears thai result from material punctures as well as
edge tears from misaligned belts.

Superior rip resistance
Scrap metal or debris often get "hung up" in llie structure of the conveyor,
causing equipment damage and slits or cuts in long sections of belt. The
Triple-Warp fabric design helps dislodge and expel foreign objects and contain rips to a small area.

Superior mechanical fastener holding strength
Rigorous dynamic and static testing ensures that Conquest belts will provide
superior mechanical fastener retention as compared with multi-ply and
straight-warp constructions.

Triple-Warp design offers a high degree of flexibility
With its superior flexibility around small pulleys, a Conquest belt saves
significant investment dollars compared with the large pulleys required for
straight-warp belt systems. This translates into a cost-per-pulley savings of
up to 80%.
