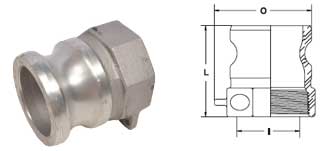

Insta-Lock™ Type A Fitting

Male Adapter x Female NPT Thread

Application

Type A fitting is commonly threaded onto a pipe, threaded hose end or manifold system, which is connected and disconnected on a regular basis. Insta-Lock fittings are designed for liquids only. Consult the chemical resistance guide for specific chemical recommendations.

Materials

Aluminum, 316# Stainless Steel and Brass

Branding

Example: Continental ContiTech A200SS

Order Codes

Aluminum: 650-825
Stainless Steel: 650-841

Size Aluminum SAP Reference Stainless Steel SAP Reference Brass SAP Reference
0.50"A050AL20195274A050SS20195328A050BR20494938
0.75"A075AL20195276A075SS20195329A075BR20494939
1.00"A100AL20135788A100SS20135857A100BR20457073
A100AL BSPT20443563A100SS BSPT20443577
1.25"A125AL20135789A125SS20135858A125BR20494970
A125AL BSPT20443571A125SS BSPT20443578
1.50"A150AL20135790A150SS20135895A150BR20494971
A150AL BSPT20443572A150SS BSPT20443579
2.00"A200AL20135791A200SS20135896A200BR20457074
A200AL BSPT20443573A200SS BSPT20443580
2.50"A250AL20135792A250SS20135897A250BR20494972
A250AL BSPT20443574A250SS BSPT20443581
3.00"A300AL20135794A300SS20135898A300BR20450758
A300AL BSPT20443575A300SS BSPT20443582
4.00"A400AL20135795A400SS20135899A400BR20450756
A400AL BSPT20443576A400SS BSPT20443583
5.00"A500AL20195277A500SS20195341A500BR20494973
6.00"A600AL20195278A600SS20195342A600BR20494974

Insta-Lock Type A Fitting

Size Distance Chain Lug Extends from Body Maxiumum Width Across Adapter (O) Overall Length (L) Minimum ID (I)
0.50"0.375"1.500"1.656"0.5000"
0.75"0.375”1.688"1.656"0.7810"
1.00"0.375”1.804"2.163"0.8750"
1.25"0.375”2.237"2.437"1.0625"
1.50"0.375”2.368"2.531"1.3750"
2.00"0.375”2.909"2.781"1.7500"
2.50"0.375”3.585"3.093"2.1870"
3.00"0.375”4.009"3.281"2.8120"
4.00"0.375”5.257"3.528"3.7500"
5.00"0.375”6.438"3.813"4.6880"
6.00"N/A7.688"3.656"5.7500"

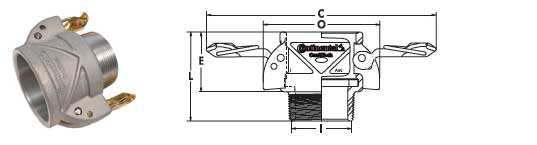

Insta-Lock™ Type B Fitting

Female Coupler x Male NPT Thread

Application

Type B fitting is normally threaded into a pipe or manifold that joins to a rubber hose assembly, which is connected and disconnected regularly. Insta-Lock fittings are designed for liquids only. Consult the chemical resistance guide for specific chemical recommendations

Materials

Aluminum, 316# Stainless Steel and Brass

Branding

Example: Continental ContiTech B200SS

Order Codes

Aluminum: 650-826
Stainless Steel: 650-842

Size Aluminum SAP Reference Stainless Steel SAP Reference Brass SAP Reference
0.50"B050AL20195279B050SS20195343B050BR20457075
0.75"B075AL20195290B075SS20195344B075BR20494975
1.00"B100AL20139546B100SS20139492B100BR20494976
B100AL BSPT20443584B100SS BSPT20443591
1.25"B125AL20139547B125SS20139493B125BR20494977
B125AL BSPT20443585B125SS BSPT20443592
1.50"B150AL20139548B150SS20139494B150BR20494978
B150AL BSPT20443586B150SS BSPT20443593
2.00"B200AL20139549B200SS20139495B200BR20494979
B200AL BSPT20443587B200SS BSPT20443594
2.50"B250AL20139580B250SS20139496B250BR20494980
B250AL BSPT20443588B250SS BSPT20443595
3.00"B300AL20139581B300SS20139497B300BR20450759
B300AL BSPT20443589B300SS BSPT20443596
4.00"B400AL20139582B400SS20139498B400BR20450690
B400AL BSPT20443590B400SS BSPT20443597
5.00"B500AL20195291B500SS20195345B500BR20494981
6.00"B600AL20195292B600SS20195347B600BR20494982

Insta-Lock Type B Fitting

Size Max. Width with Cam Arms Closed (O)Overall Length (L) Exposed Length (E)Minimum ID (I)Max. Width with Cam Arms Extended (C)
0.50"2.47"1.906"1.188"0.4690"4.900"
0.75"2.78"2.031"1.313"0.6880"5.178"
1.00"2.92"2.500"1.625"0.8750"5.367"
1.25"3.51"2.937"2.000"1.0625"7.669"
1.50"3.83"2.937"2.000"1.3750"7.967"
2.00"4.21"3.218"2.156"1.7500"8.340"
2.50"4.72"3.718"2.250"2.1870"8.837"
3.00"5.68"4.000"2.468"2.8120"10.435"
4.00"6.78"4.218"2.593"3.7500"11.538"
5.00"7.81"4.406"2.625"4.6880"12.534"
6.00"9.34"4.750"2.844"5.7500"16.058"

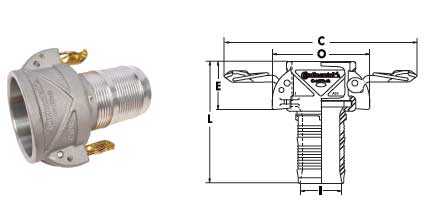

Insta-Lock™ Type C Fitting

Female Coupler x Hose Shank

Application

Type C fitting can be attached to a rubber hose with the use of interlocking ferrules, crimp sleeves or bands. Insta-Lock fittings are designed for liquids only. Consult the chemical resistance guide for specific chemical recommendations.

Materials

Aluminum, 316# Stainless Steel and Brass

Branding

Example: Continental ContiTech B200SS

Order Codes

Aluminum: 650-827
Stainless Steel: 650-843
Brass: 650-835

Size Aluminum SAP Reference Stainless Steel SAP Reference Brass SAP Reference
0.50"C050AL20195293C050SS20195348C050BR20450781
0.75"C075AL20195294C075SS20195349C075BR20450780
1.00"C100AL20139583C100SS20139475C100BR20218518
1.25"C125AL20139584C125SS20139476C125BR20450778
1.50"C150AL20139585C150SS20139477C150BR20218519
2.00"C200AL20139586C200SS20139478C200BR20218730
2.50"C250AL20139587C250SS20139491C250BR20264867
3.00"C300AL20139588C300SS20139479C300BR20218731
4.00"C400AL20139589C400SS20139490C400BR20218732
5.00"C500AL20195295C500SS20195360C500BR20450754
6.00"C600AL20195296C600SS20195362C600BR20450657

Insta-Lock Type C Fitting

Size Max. Width with Cam Arms Closed (O)Overall Length (L) Exposed Length (E)Minimum ID (I)Max. Width with Cam Arms Extended (C)
0.50"2.47"3.063"0.821"0.260"4.902"
0.75"2.78"3.656"1.313"0.490"5.178"
1.00"2.92"4.250"1.975"0.718"5.367"
1.25"3.51"4.625"2.350"0.906"7.669"
1.50"3.83"4.750"2.370"1.156"7.967"
2.00"4.21"5.281"2.531"1.625"8.340"
2.50"4.72"5.750"2.625"2.093"8.837"
3.00"5.68"6.840"2.849"2.560"10.435"
4.00"6.78"7.218"2.994"3.468"11.538"
5.00"7.81"7.563"2.625"4.469"12.534"
6.00"9.34"8.969"2.844"5.469"16.058"

Note: Continental ContiTech Insta-Lock fittings are never to be used in steam or compressed air service.
Continental ContiTech Insta-Lock cam arms are designed exclusively for Insta-Lock fittings.
