ORDER COOE: 541·532 (Nitriletube) 541-534 (Flosyntube)

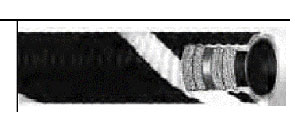

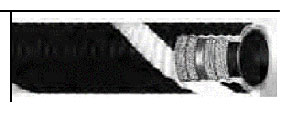

APPLICATION: Built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounts are available to tailor the chemical and hydrocarbon and hydrocarbon resistance of the hose to the type of material handled.
CONSTRUCTION TUBE: Nitrile synthetic rubber for up to 5O% aromatics. Also available with Flosyn tube for up 100% aromatics.
COVER: Black Wingprene synthetic cover, wrapped finish.
REINFORCEMENT: Spiral-plied heavy duty synthetic fabric with double wire helix.
TEMPERATURE: -25F to 2OO'F (-32C to 93C)
PACKAGING: Chloroplast heavy duty packaging.
BRANDING (SPIRAL}: Example: Goodyear- Flexdock 225 psi WP Nitrile Oil Service.
COUPLINGS: Coupled with standard built-in steel nipples flangos. Available in other bolt hole patterns, materials and floating flanges on request. Swage nipples are offered up 10". Hose assembly is electrically continuous unless otherwise specified by customer.
