NoticeThis information is provided for reference only! The product(s) represented in this literature were previously manufactured by Goodyear Engineered Products- Veyance Technologies until January of 2015 when this legal entity was acquired by Continental AG of Germany and became part of their ContiTech Industrial Products Division. Many of these products are still available today but are currently branded with the Continental ContiTech logo and name. Some product names have been changed, however most have remained the same under Continental.Goodyear Rubber Products, Inc. is an independent authorized distributor of Continental ContiTech products. |
|
Infinity Hoses
Quote Cart: 0 item(s) | View Quote Cart
|
|

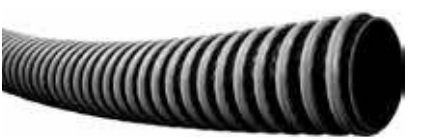

Infinity™ Fuel Drop Hose
Product Specifications | |
ApplicationConstructed with the exclusive PVC double helix for superior flexibility, abrasion resistance and low coefficient of friction for ease of maneuverability. Lightweight in construction, it is designed to transfer biodiesel and ethanol blends, gasoline and other petroleum products under pressure, gravity flow or medium suction (up to 23° Hg) at ambient temperature and with an aromatic content of 60% or less. Construction TubeBlack Nitrile synthetic rubber (static dissipating) CoverBlack Chemivic™ synthetic rubber with orange & green Pliovic® outer helix ReinforcementSynthetic fabric plies with static wire |
Temperature Range-40 °F to 160°F (-40°C to 71°C) PackagingCoiled and polywrapped. For cut length, check with your Continental ContiTech distributors. BrandingExample: Infinity™ Drop Hose Continental ContiTech CouplingsUse Continental ContiTech Insta-Lock™ Cam & Groove Fittings with this product Order Codes543-773 |
|
Infinity™ SAP # ID Nom. OD Max. WP Bend Radius Vacuum HG Weight Black in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m 20414700 2 51.0 2.80 70.50 150 1.03 1.5 1.02 23 584 1.02 1.52 20414701 3 76.0 3.80 95.48 100 0.69 2.0 1.46 23 584 1.46 2.18 20414702 4 102.0 4.80 121.47 75 0.52 2.5 1.73 23 584 1.73 2.57 |
|
Add to Quote Cart
Applications
Infinity Hoses is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 23° Hg) at ambient temperature and with an aromatic content of 60% or less. |
| 40 °F to 160°F (-40°C to 71°C) Packaging Coiled and polywrapped. |
| 543-773 Infinity™ SAP # ID Nom. |
