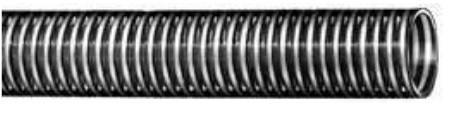

Nutriflo® Suction and Discharge Hose


Product Specifications

Application

For handling almost every type of dry bulk food material or liquid in gravity flow and vacuum service. Nutriflo® conforms to USDA Meat and Poultry, 3-A Sanitary, and FDA Standards, and is used for the transmission of raw and pasteurized milk and other high water content dairy items.

Construction Tube

Clear Pliovic® (FDA, 3-A, USDA compliant), NSF-61

Cover

Clear Pliovic®

Reinforcement

White or Clear high-density Pliovic® helix

Temperature Range

-15 °F to 158°F (-26°C to 70°C)

Packaging

100’ length, coiled, polywrapped

Branding

Not branded

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

Order Codes

586-416 ( white)
586-421 ( clear)

Nutriflo®

Suction and Discharge SAP # ID Nom. OD Max. WP Bend Radius Vacuum HG Weight White Clear in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m 20013266 20328013 3/4 19.1 0.99 25.2 120 0.83 3 83 29 737 0.18 0.27 20013269 20013329 1 25.4 1.24 31.5 106 0.73 5 114 29 737 0.26 0.39 20013274 20013330 1e 31.8 1.55 39.4 99 0.68 5 127 29 737 0.36 0.54 20013279 20013331 1f 38.1 1.78 45.2 89 0.61 6 152 29 737 0.43 0.64 20013283 20013332 2 50.8 2.37 60.2 79 0.54 8 203 29 737 0.67 1.00 20013287 20013333 2f 63.5 2.89 73.4 65 0.45 10 254 29 737 0.89 1.32 20013290 20013334 3 76.2 3.48 88.4 65 0.45 12 305 29 737 1.15 1.71 20013293 20013335 4 101.6 4.50 114.3 55 0.38 16 406 29 737 1.65 2.46 20013297 20013337 6 152.4 6.63 168.4 47 0.32 36 914 29 737 3.39 5.04
