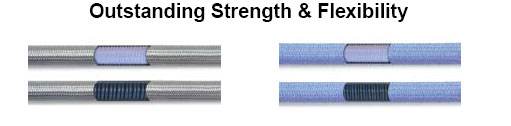

PARKER/PAGE International designs and manufactures high quality seamless convoluted hoses that are open pitched and self draining. Standard seamless PTFE braided hoses are extremely lightweight, flexible and kink resistant. PARKER/PAGE Convoluted Fluoropolymer PTFE hoses are less subsceptible to cracking from stress or flexing than metal hoses or other Fluoroplastic hoses when used within designated operating parameters.

PARKER/PAGE offers two types of PTFE inncercore, natural and conductive (static-dissipative). External hose reinforcements consist of stainless steel, polypropylene and many other metallic and non-metallic braid options including fire sleeve, wire guard and polyolefin heat shrinkable tubing.

PTFE is Extremely Chemical Resistant - (Non- Corrosive)

• Environmentally Safe - (Low Effusion)
• Non-Adhesive
• Easy Cleaning
• Long Life Expectancy
• Maximum Durability

Identification labels are available for all of the PARKER/PAGE hose assemblies. Ask your representative for more details

PARKER/PAGE Flare-Seal PTFE hose products are designed
and manufactured to provide the ultimate in high purity,
corrosion/chemicaL resistance and sanitary applications.

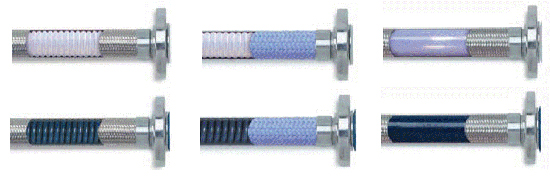

PARKER/PAGE Flare-SeaL PTFE hose products are available
in convoluted or smooth True Bore with stainless steel braid
or as polypropylene braided convoluted assemblies. They
can be manufactured in naturaL [non-conductive] or black
[conductive-static dissipating) assemblies.

One unique benefit offered by PARKER/PAGE Flare-Seal
hoses is that the PTFE hose Liner actually passes through the
inside of the fitting and it is then flared over the face of the
fitting. This special process is a significant improvement over
conventional fitting assembly procedures, where the fitting
normally passes through the inside of the Liner, creating
flow restrictions and bacterial entrapment. PARKER/PAGE
Flare-Seal products solve these problems with the benefit
of unrestricted flow leaving no area for bacterial entrapment
while providing 100% PTFE coverage on all wetted surfaces.
Flare-SeaL products can be provided with flanged ends or
sanitary tri-clamp end connections.

PARKER/PAGE lntemational Smoothbore PTFE Hose is specified in many of the most challenging
industrial applications. The extruded PTFE tube has excellent flex life. high temperature
tolerance and superior chemical resistance. PARKER/PAGE PTFE is steam compatible and
non adhesive, making it an excellent choice for applications requiring steam cleaning of an
assembLy or transfer of highly viscous media such as adhesives and paints.

PARKER/PAGE PTFE hose products are FDA compliant and an ideal choice for food and
beverage applications. In addition to high temperature hydraulic and pneumatic systems,
such as those found in steel mills, foundries, transit buses and air compressors are examples
of industrial applications that showcase PARKER/PAGE hose as a problem solver.
