Flexdock® 225 Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application

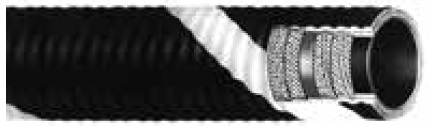

Flexdock® 225 is built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the type of material handled. Construction> Tube Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn® tube for up to 100% aromatics > CoverBlack Wingprene® synthetic cover, corrugated, wrapped finish > ReinforcementSpiral-plied heavy-duty synthetic fabric with double wire helix |
Temperature Range
–25°F to 200°F (–32°C to 93°C) PackagingChloroplast heavy-duty packaging Branding (Spiral)Example: Continental ContiTech Flexdock® 225 psi WP CouplingsCoupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges upon request. Swage nipples are offered up to 10”. Hose assembly is electrically continuous unless otherwise specified by customer. Non-Stock/SizesCustom lengths available, contact customer service. Order Codes541-532 (nitrile tube) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexdock® 225 Nitrile
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexdock® 225 Flosyn®
Hose design ratio (burst pressure) 4:1. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexdock® 300Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
Flexdock® 300 is built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the type of material handled. Construction> Tube Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn® tube for up to 100% aromatics > CoverBlack Wingprene® synthetic cover, corrugated, wrapped finish > ReinforcementHeavy-duty synthetic fabric plies with double wire helix |
Temperature Range
–25°F to 200°F (–32°C to 93°C) PackagingChloroplast heavy-duty packaging Branding (Spiral)Example: Continental ContiTech Flexdock® 300 psi WP Oil Service CouplingsCoupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges upon request. Swage nipples are offered up to 10”. Hose assembly is electrically continuous unless otherwise specified by customer. Non-Stock/SizesCustom lengths available, contact customer service. Order Codes541-532 (nitrile tube) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexdock® 300 Nitrile
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flexdock® 300 Flosyn®
Hose design ratio (burst pressure) 4:1. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
Flexdock is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 25°F to 200°F (–32°C to 93°C) Packaging Chloroplast heavy-duty packaging Branding (Spiral) Example: Continental ContiTech Flex |
| 225 psi WP Couplings Coupled with standard built-in steel nipple/150#RFSO flanges. |
| 541-532 (nitrile tube) 541-534 (Flosyn® tube) Flexdock® 225 Nitrile SAP # ID Nom. |
| 01 Flexdock® 225 Flosyn® SAP # ID Nom. |
| 300 psi WP Oil Service Couplings Coupled with standard built-in steel nipple/150#RFSO flanges. |
| 541-532 (nitrile tube) 541-534 (Flosyn® tube) Flexdock® 300 Nitrile SAP # ID Nom. |
| 60 Flexdock® 300 Flosyn® SAP # ID Nom. |
