Goodyear Rubber Products

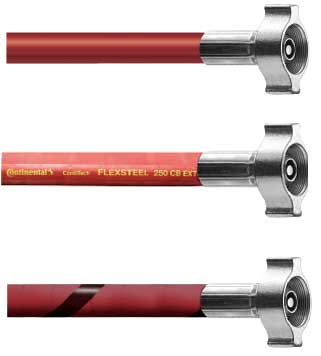

Flexsteel Steam Hose

Name: Flexsteel Steam Hose
Brand: Goodyear Rubber Products
Availability: InStock

Quote Cart: 0 item(s) | View Quote Cart

Industrial Hose 2014 Crimped Steam Hose Program

A leaky steam hose can “hiss away” 2.6 lbs. of steam per minute... annually, that can really add up! That’s why Continental ContiTech has developed a Crimped Steam Hose Program. The program combines our premium steam hose with couplings specifically designed for steam assemblies that reduce leaks, reduce electrostatic discharges and cut costs.

A single leaky coupling

Steam Loss	Cost	Day	Week	Month	Steam Season
2.6 lbs./min	$11/1,000 lbs. steam	$41	$287	$1,250	$6,200

Premium Steam Hose and Fittings

Our steam hose is the premium hose choice for multiple steam applications, such as cleaning, heat control, fire prevention, pumping, thawing, blow-out service, steam pumps and hoists in open-end or permanent installation operations.

Flexsteel® 250

Construction Tube: Pyrosyn® synthetic rubber
Cover: Black or red Pyrosyn smooth finish, pin-pricked
Reinforcement: Braided (2) wire
Temperature Range: -40°F to 450°F (-18°C to 232°C)

Flexsteel 250 CB Extreme Crimp Steam

Construction Tube:Chlorobutyl synthetic rubber
Cover: Black or red wrapped Pyrosyn®, pin-pricked
Reinforcement:Braided (2) wire
Temperature Range: -40°F to 450°F (-40°C to 232°C)

Flexsteel® 250 EPOM 20

Construction Tube:Pyrosyn synthetic rubber
Cover:Red wrapped Pyrosyn, pin-pricked
Reinforcement:Braided (2) wire
Temperature Range: -40°F to 450°F (-40°C to 232°C)

Hose Description	Nominal ID		Nominal OD		Maximum WP		Weight
	in.	mm	in.	mm	psi	mPa	lb./ft	kg/m
Flexsteel 250 Steam	3/4	19.1	1.28	32.50	250	1.72	0.55	0.82
Flexsteel 250 Steam	1	25.4	1.63	41.40	250	1.72	0.91	1.35
Flexsteel 250 EPDM-20	3/4	19.1	1.28	32.50	250	1.72	0.59	0.83
Flexsteel 250 CB Extreme Crimp Stream	3/4	19.1	1.31	33.27	250	1.72	0.68	1.01

Even the best-designed steam hose is only as good as its coupling

Clamps that need periodic re-tightening may still cause costly leaks and potential hazards, but with our crimped steam hose program, you no longer spend maintenance time tightening bolts. You get a tight crimp that reduces leaks.

Coupling is crimped permanently onto hose; this eliminates bulky bolt clamps and reduces potential for injury or damage from clamps snagging on personnel or property
Ferrule “bites” into reinforcement wire in hose achieving electrical continuity to reduce the occurrence of static discharges and shocks
Crimp coupling is a permanent attachment, which reduces potential for leaks and blow-outs

Recommended over-the-cover crimp diameters for Continental ContiTech branded steam hose

Hose Description	Hose Product Code	Hose ID	Femal Ground Joint Low Profile Nut	Female Ground Joint Wing Nut	Male Npt	Male Npt Swivel	Female Spud	Crimp Dia.	Perma-Crimp™ Die Set / Approx. Setting
Flexsteel 250 Steam (Black, Red)	539-070-024 539-076-024	3/4”	RGJS-3V	GJS-3V	IMS-3V	IMS-3VSW	GFS-3	1.440"	34	2.6
Flexsteel 250 Steam (Black)	539-070-032	1”	RGJS-4V	GJS-4V	IMS-3V	IMS-3VSW	GFS-4	1.925”	45	3.9
Flexsteel 250 EPDM-20 (Red)	539-486-024	3/4”	RGJF-3V	GJF-3V	IMS-3V	IMS-3VSW	GFS-3	1.420”	34	2.07
Flexsteel 250 CB Extreme Crimp Steam (Black, Red)	539-870-024 539-876-024	3/4”	RGJF-3V	GJF-3V	IMS-3V	IMS-3VSW	GFS-3	1.430”	34	2.32

Recommended skive crimp diameter for 1” red steam hose

Hose Description	Hose Product Code	Hose ID	Campbell Male NPT Stem	Campbell Female Ground Joint Stem	Campbell Wing Nut	Campbell Ferrule	Crimp Dia.	Die Set	Approx. Setting	Skive Lenngth
Flexsteel 250 Steam (Red)	539-076-032	1”	IMS-4G	GJS-4G NS	GN-3-IMP	SCF-4G	1.66 ”	39	3.16	1.50"

Add to Quote Cart

Applications

Flexsteel Steam Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.

Materials Overview

Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.

Selection Guidance

Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.

Installation and Maintenance Notes

Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.

Industries Served

Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.

Technical Specifications

Existing Technical Claim (Verbatim)
2) wire Temperature Range: -40°F to 450°F (-18°C to 232°C) Flexsteel 250 CB Extreme Crimp Steam Construction Tube: Chlorobutyl synthetic rubber Cover: Blac
2) wire Temperature Range: -40°F to 450°F (-40°C to 232°C) Flexsteel® 250 EPOM 20 Construction Tube: Pyrosyn synthetic rubber Cover: Red wrapped Pyrosy
2) wire Temperature Range: -40°F to 450°F (-40°C to 232°C) Hose Description Nominal ID Nominal OD Maximum WP Weight in.
01 Even the best-designed steam hose is only as good as its coupling Clamps that need periodic re-tightening may still cause costly leaks and potential
