Fortress® 3000 with Microban® Product Protection
Product Specifications
|
Application
Fortress® 3000 is for use on pressure washing machines with working pressures up to 3000 psi Applications include washdown service in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries Its super abrasion- and oil-resistant cover provides maximum protection against the adverse effects of oil and animal fats The cover of the Fortress® 3000 hose incorporates Microban®* antimicrobial built-in product protection
Construction
< Tube
Nitrile synthetic rubber
< Cover
Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) with Microban® built-in product protection
< Reinforcement
One braided steel wire
|
Temperature Range
-20°F to 250°F (-29°C to 121°C)
Packaging
500' reel, maximum 3 pieces, 50' increments: coupled lengths available
Branding
Example: Fortress® 3000 with Microban® Antimicrobial Product Protection 3/8" 3000 psi WP Made in USA Continental ContiTech
Couplings
Use ContiTech pressure washing fittings with this product See the Coupling Systems information pages at the back of this catalog for available sizes Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications
Order Codes
539-400 (yellow)
539-401 (blue)
|
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Yellow | in. | mm | in. | mm | psi | MPa | lb./ft. | kg/m |
|---|
| 20141421 | 1/4 | 6.4 | 0.53 | 13.5 | 3000 | 20.69 | 0.15 | 0.22
| | 20139340 | 3/8 | 9.5 | 0.69 | 17.5 | 3000 | 20.69 | 0.24 | 0.36
| | 20141423 | 1/2 | 12.7 | 0.82 | 20.8 | 3000 | 20.69 | 0.32 | 0.48 |
Hose design ratio (burst pressure) 4:1
*Microban® antimicrobial product protection inhibits the growth of bacteria, mold and fungi that can cause odor, stains or degradation of the hose cover
Microban® is intended to protect the hose cover only It is not a substitute for good sanitary practices
|

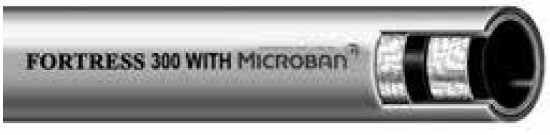

Fortress® 300 with Microban® Product Protection
Product Specifications
|
Application
A high-quality-construction hose for hot water cleanup, up to 200°F (93°C). Use this hose in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries. Its super abrasion and oil-resistant cover provides maximum protection against the adverse effects of oil and animal fats. The cover of the Fortress® 300 hose incorporates Microban®* antimicrobial built-in protection.
Construction
< Tube
Black nitrile synthetic rubber
< Cover
Yellow Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) with Microban® product protection
< Reinforcement
Spiral synthetic yarn
Temperature Range
-20°F to 210°F (-29°C to 99°C)
|
Packaging
1/2”–3/4” – 500' reels, maximum 3 pieces, 50' increments
1”– 450' reels, maximum 3 pieces, 50' increments
Branding
Example: Fortress® 300 with Microban® Antimicrobial Product Protection 3/8” 300 psi WP. Made in USA Continental ContiTech
Couplings
Use ContiTech pressure washing fittings with this product. See the Coupling Systems information pages at the back of this catalog for available sizes. Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Coupled lengths with MxMS fittings and kink guards available.
Order Codes
569-120 (yellow)
|
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Yellow | in. | mm | in. | mm | psi | MPa | lb./ft. | kg/m |
|---|
| 20135640 | 1/2 | 12.7 | 0.90 | 22.8 | 300 | 2.07 | 0.29 | 0.43
| | 20135644 | 5/8 | 15.9 | 1.06 | 27.0 | 300 | 2.07 | 0.36 | 0.54
| | 20135645 | 3/4 | 19.1 | 1.19 | 30.2 | 300 | 2.07 | 0.41 | 0.61
| | 20135646 | 1 | 25.4 | 1.50 | 38.1 | 300 | 2.07 | 0.60 | 0.89 |
Hose design ratio (burst pressure) 4:1.
*Microban® antimicrobial product protection inhibits the growth of bacteria, mold and fungi that can cause odor, stains or degradation of the hose cover.
Microban® is intended to protect the hose cover only. It is not a substitute for good sanitary practices.
|

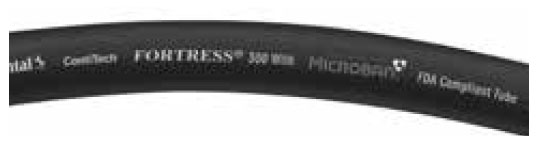

Blue Fortress® 300 with Microban® with FDA Compliant White Tube
Product Specifications
|
Application
A high-quality-construction hose for hot water washdown and cleanup service up to 200°F (93°C). It can be used in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries. Its super abrasion and oil-resistant cover provides maximum protection against the adverse effects of oil and animal fats. The cover of the Blue Fortress® 300 hose incorporates Microban®* antimicrobial built-in product protection. The white tube is comprised of FDA-compliant materials.
Construction
< Tube
White FDA compliant nitrile synthetic rubber
< Cover
Blue Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) with Microban® product protection
< Reinforcement
Spiral synthetic yarn
Temperature Range
-20°F to 210°F (-29°C to 99°C)
|
Packaging
1/2”–3/4” – 500' reels, maximum 3 pieces, 50' increments
1”– 450' reels, maximum 3 pieces, 50' increments
Packaging
Bulk
Branding
Example: Fortress® 300 with Microban® Antimicrobial Product Protection 3/4" 300 psi WP Made in USA Continental ContiTech
Couplings
Use ContiTech pressure washing fittings with this product. See the Coupling Systems information pages at the back of this catalog for available sizes. Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Coupled lengths with MxMS fittings and kink guards available.
Order Codes
569-120 (yellow)
|
| SAP # |
ID |
Nom. OD |
Max. WP |
Weight |
| Blue | in. | mm | in. | mm | psi | MPa | lb./ft. | kg/m |
|---|
| 20189064 | 1/2 | 12.7 | 0.90 | 22.8 | 300 | 2.07 | 0.30 | 0.45
| | 20630248 | 5/8 | 15.8 | 1.06 | 26.9 | 300 | 2.07 | 0.37 | 0.62
| | 20190318 | 3/4 | 19.1 | 1.19 | 30.2 | 300 | 2.07 | 0.44 | 0.65
| | 20459020 | 1 | 25.4 | 1.50 | 38.1 | 300 | 2.07 | 0.57 | 0.95 |
Hose design ratio (burst pressure) 4:1.
*Microban® antimicrobial product protection inhibits the growth of bacteria, mold and fungi that can cause odor, stains or degradation of the hose cover.
Microban® is intended to protect the hose cover only. It is not a substitute for good sanitary practice.
|
