Goodyear Falcon PD belts

Javascript DHTML Drop Down Menu Powered by dhtml-menu-builder.com

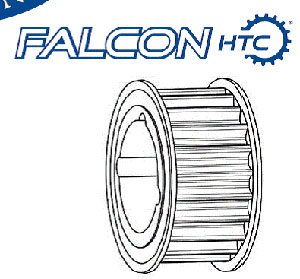

Pari No: GTR-22G-8M-12
GTR Falcon HTC Sprocket
22G 22 Grooves/Teeth
8M 8 mm Pitch length
12 12 mm Width

APPLICATIONS

Any applications where a chain drive could be used or
there is a need for a high-efficiency drive system.

For use where Falcon HTC belts are specified or desired.

System is backside idler compatible allowing for additional
applications.

KEY FEATURES & BENEFITS

• Goodyear Engineered Products GTR-22G-8M-12
replaces 8MX-22S-12

• Convenient replacement for existing Poly Chain-
GT 2 and Poly Chain GT Carbon-drives

• Cast iron or steel construction

• Stock on most popular application sizes Other sizes
available as special order.

COMPACT DRIVES WITH HIGH PERFORMANCE
Falcon HTC sprockets are designed to be a part of a complete high performance drive system. Working with our premium synchronous Falcon HTC belts allows for a lot of performance in a small space. giving you flexibilityy in design and application.

Falcon HTC belts and sprockets are ideal for usc on a wide variety of applications and industries.

QUIETER, MORE FLEXIBLE DRIVE SYSTEM
Falcon HTC belt and sprocket systems also offer a decrease in operating noise:. Tests show up to 6dB quieter operation than comparable: Poly Chain GT 2 and Poly Chain GT Carbon belt systems.

Proprictary rubber construction provides better resistance to flex fatigue: and versatility in a wide range of operating temperatures.

MATCHING BELT TO SPROCKET IS SIMPLE
The part numbering system for Falcon HTC sprockets is simple and easy. Just match the belts width and pitch length to that of the: sprocket and select the preferred number of grooves /teeth to provide the desired performance characteristics. Refer to the part number example above for a part number breakdown.


A SYSTEM THAT WORKS WITH LESS MAINTENANCE
Since Falcon HTC belts are made of our proprietary high-grade: rubber compound, you get a solution that can handle very demanding synchronous drive systems. Falcon HTC does not require lubrication. There is also no need for retensioning after the: initial run in period like V-belts drives. Install a Falcon HTC drive system and watch your maintenance costs drop.

Get What you Pay For
With Falcon HTC belts and sprockets, you get more of what you pay for with each energy dollar. This is especially true when Falcon HTC is applied to high-energy consuming drives that are used 24 hours a day, as well as high horsepower drives that inflate: energy consumption during peak periods.



FALCON HTC"

Part No: 8GTR-640-12
8 8mm Pitch Length
GTR Falcon HTC Belt
640 640mm Pitch
12 12mm Width



THE STAR OF OUR REINFORCED RUBBER POWER TRANSMISSION BELT PORTFOLIO
Falcon HTC is quickly setting the new standard in synchronous drive system belting. When compared to conventional polyurethane synchronous belts , the benefits of Falcon HTC become evident.


SPECIALTY COMPOUNDED MATERIALS GIVE THIS BELT SUPERIOR ADVANTAGES
A reinforced-rubber synchronous belt designed to work in a variety of demanding drives, Falcon HTC now offers up to 30 percent more horsepower Over its predecessor. The ability to operate continuously in temperatures up to 200 degrees 'F, along with being static conductive:, helps Falcon HTC perform in special applications, providing longer life and higher output to meet your needs.

QUIET OPERATION
Falcon HTC runs quieter, up co 6dB in operacion for a better environment while offering advanced flex-fatigue resistance to help extend belt life.


LOWER MAINTENCE COST REDUCE THE PAIN
Falcon HTC synchronous belts do not require lubrication often found in chain drive applications. High-modulus cord members minimize the need for retensioning normally required in standard v-belts, reducing your overal maintenance cost.
