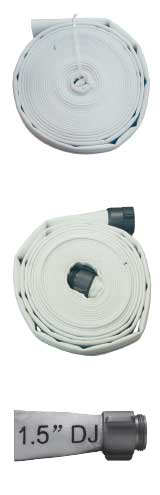

Dixon Mill Hose
Ideal for open end discharge or washdown applications
|
Application:
- Used in open end water discharge applications only. Not intended for fire fighting service.
Features:
- outer construction: single jacket, all polyester
- tube construction: black, PVC rubber
- rated pressure: 250 PSI at ambient temperature (70°F)
- working pressure: 112 PSI at ambient temperature (70°F)
- Consult Dixon for pricing and availability on 75’ lengths and other threads and configurations.
Size |
Bowl |
Length |
Part # |
1" |
1-1/4" |
50' |
M10-50UC |
1" |
1-1/4" |
100' |
M10-100UC |
1½" |
1-11/16" |
25' |
M15-25UC |
1½" |
1-11/16" |
50' |
M15-50UC |
1½" |
1-11/16" |
100' |
M15-100UC |
2" |
2-3/8" |
25' |
M20-25UC |
2" |
2-3/8" |
50' |
M20-50UC |
2" |
2-3/8" |
100' |
M20-100UC |
2½" |
2-11/16" |
25' |
M25-25UC |
2½" |
2-11/16" |
50' |
M25-50UC |
2½" |
2-11/16" |
100' |
M25-100UC |
3" |
3-3/8" |
25' |
M30-25UC |
3" |
3-3/8" |
50' |
M30-50UC |
3" |
3-3/8" |
100' |
M30-100UC |
4" |
4-3/8" |
25' |
M40-25UC |
4" |
4-3/8" |
50' |
M40-50UC |
4" |
4-3/8" |
100' |
M40-100UC |
6" |
6-3/8" |
25' |
M60-25UC |
6" |
6-3/8" |
50' |
M60-50UC |
|

|
Coupled with female and male expansion ring couplings
| Size |
Length |
Rocker Lug Aluminum NPSH RAS |
Rocker Lug Aluminum NST (NH) RAF |
Rocker Lug Aluminum MNPT x MNPT RAT |
Rocker Lug Aluminum CT RA_ 1 |
1½" |
50' |
M15-50RAS |
M15-50RAF |
M15-50RAT |
--- |
1½" |
100' |
M15100RAS |
M15100RAF |
M15100RAT |
--- |
2" |
50' |
M20-50RAS |
--- |
M20-50RAT |
--- |
2" |
100' |
M20100RAS |
--- |
M20100RAT |
--- |
2½" |
25' |
M25-25RAS |
M25-25RAF |
--- |
M25-25RA__1 |
2½" |
50' |
M25-50RAS |
M25-50RAF |
M25-50RAT |
M25-50RA__1 |
2½" |
100' |
M25100RAS |
M25100RAF |
M25100RAT |
M25100RA__1 |
1 Customer Thread (must specify) refer to legend on back.
Consult Dixon for pricing and availability for any of the following features:
• 75' lengths
• other threads and configurations
|
All Synthetic Double Jacket Mill Hose
Application:
• ideal for open end discharge applications, not intended for fire fighting service
Features:
• outer construction: double jacket, all polyester
• tube construction: black, PVC rubber
• rated pressure: 250 PSI at 70°F
• working pressure: 200 PSI at 70°F
Size |
Bowl |
Length |
Part # |
1½" |
1-13/16" |
50' |
DM15-50UC |
1½" |
1-13/16" |
100' |
DM15-100UC |
2" |
2-5/16" |
50' |
DM20-50UC |
2" |
2-5/16" |
100' |
DM20-100UC |
2½" |
2-7/8" |
50' |
DM25-50UC |
2½" |
2-7/8" |
100' |
DM25-100UC |
Coupled with female and male rocker lug, aluminum expansion ring couplings
Size |
Bowl |
Length |
NST (NH) Part # |
NPSH Part # |
Customer Thread Part # |
1½" |
1-13/16" |
50' |
DM15-50RAF |
DM15-50RAS |
--- |
1½" |
1-13/16" |
100' |
DM15100RAF |
DM15100RAS |
--- |
2½" |
2-7/8" |
50' |
DM25-50RAF |
DM25-50RAS |
DM25-50RA___1 |
2½" |
2-7/8" |
100' |
DM25100RAF |
DM25100RAS |
DM25100RA___1 |
1 Customer Thread (must specify) refer to legend below
Coupled with male (NPT) x male (NPT) thread, rocker lug, aluminum expansion ring couplings
Size |
Bowl |
Length |
Part # |
1½" |
1-13/16" |
50' |
DM15-50RAT |
1½" |
1-13/16" |
100' |
DM15100RAT |
2" |
2-5/16" |
50' |
DM20-50RAT |
2" |
2-5/16" |
100' |
DM20100RAT |
2½" |
2-7/8" |
50' |
DM25-50RAT |
2½" |
2-7/8" |
100' |
DM25100RAT |
Consult Dixon for pricing and availability for any of the following options:
• 75' lengths
• other threads and configurations
|
 |
Initials |
Common Name |
Dixon Suffix |
Region Normally Used |
2½" ODM 1 |
2½" TPI 2 |
AMA & BCT |
Alberta Mutual Aid/ British Columbia Thread |
B |
British Columbia & Alberta |
3.00 |
8 |
CSA |
Canadian Standard Association |
C |
Ontario |
3.125 |
5 |
NS1 |
Nova Scotia 1 |
NS |
Nova Scotia |
3.23 |
5 |
QST & QMT |
Quebec Standard Thread |
Q |
Quebec |
3.031 |
7 |
WCT |
Western Canada Thread |
W |
Saskatchewan & Manitoba |
3.25 |
6 |
| GHT |
Garden Hose Thread |
G |
North America |
1 outside diameter of male
2 threads per inch
|
| NPS |
National Pipe Straight |
S |
| NPT |
National Pipe Tapered |
T |
| NST (NH) |
National Standard Thread |
F |
Most of USA |
| NYC |
New York Corporation |
NYC |
Newark, NJ |
| NYFD |
New York Fire Department |
NYFD |
New York Fire Department |
|
