Aircraft Hose
|

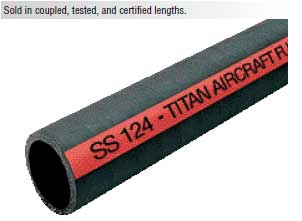

SS124 AIRCRAFT FUELING HOSE
Economically designed, ultra-flexible aircraft fueling hose.
- Meets or exceeds all requirements for aircraft refueling hose: API 1529/6th Edition 2005, Type C, Grade 1, NFPA 407, Maximum W.P. 150 PSI. Tested to 300 PSI.
- Lightweight construction allows easy handling for reel service.
- Tube: Extruded specially compounded Nitrile.
- Reinforcement: Textile.
- Cover: Specially compounded Nitrile.
- Temperature: -40° to +180°F.
|
|
| I.D. |
O.D. |
REINFORCEMENT |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
| 1” | 19/16” | 2 plies | 150 | .56
| | 11/4” | 113/16” | 2plies | 150 | .66
| | 11/2” | 21/16” | 2plies | 150 | .79
| | 2” | 29/16” | 2plies | 150 | 1.01 |
|
SS244 AIRCRAFT FUELING HOSE
Economically designed, ultra-flexible aircraft fueling hose.
- Designed to handle commercial and military aviation fuels.
- Excellent for top deck reel and platform type refuelers.
- High grade seamless extruded tube diminishes contamination of fuels and fuel systems.
- Meets or exceeds all requirements for aircraft fueling hose specified in API 1529/6th Edition 2005 Type C, Grade 2, NFPA 407, BS EN1361:1997/C, Maximum w.p. 300 PSI (20 bars), Hydrostatically tested to 600 PSI.
- Tube: Extruded Nitrile.
- Reinforcement: Textile.
- Cover: Specially compounded Nitrile.
- Temperature: -40° to +180°F.
|
|
| I.D. |
O.D. |
REINFORCEMENT |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
| 1” | 111/16” | 4 plies | 300 | .64
| | 11/4” | 115/16” | 4 plies | 300 | .76
| | 11/2” | 23/16” | 4 plies | 300 | .91
| | 2” | 211/16” | 4 plies | 300 | 1.23
| | 21/2” | 33/16” | 4 plies | 300 | 1.50
| | 3” | 311/16” | 4 plies | 300 | 1.85
| | 4” | 47/8” | 6 plies | 300 | 2.80 |
|
SW344 AIRCRAFT JAC-RISER HOSE
Economically designed, ultra-flexible aircraft fueling hose.
- Designed for aircraft refuelers equipped with moveable service platforms to act as a flexible connection between the platform and the refueling truck.
- Excellent for defueling applications.
- Meets or exceeds all requirements specified in API 1529/6th Edition 2005 Type E, Grade 2, & NFPA 407, BSEN1361:1997/E, Maximum w.p. 300 PSI, Hydrostatically tested to 600 PSI.
- Tube: Extruded Nitrile.
- Reinforcement: Textile with dual wire helix.
- Cover: Specially compounded Nitrile.
- Temperature: -40° to +180°F.
|
|
| I.D. |
O.D. |
BEND RADIUS |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
VACUUM |
| 11/2” | 25/16” | 6” | 300 | 1.34 | Full
| | 2” | 213/16” | 8” | 300 | 1.73 | Full
| | 3” | 37/8” | 12” | 300 | 2.75 | Full
| | 4” | 415/16” | 16” | 300 | 3.95 | Full |
|
Chemical Hose
|
SP483 LIGHT–N–BRIGHT CHEMICAL SUCTION – MOD CROSS–LINK
- Versatile chemical suction and discharge hose designed to handle 90% of all known industrial chemicals.
- Modified XLPE tube offers superior chemical resistance.
- External PVC rod provides abrasion resistance and flexibility.
- 4 to 1 safety factor for protection against impulse surges to help reduce worker injuries and environmental accidents.
- Tube: Extruded Modified Cross-Linked Polyethylene.
- Reinforcement: Textile and static wire,supported by an external PVC helix.
- Cover: Blue synthetic rubber.
- Temperature: -40° to +180°F.
|
|
| I.D. |
O.D. |
BEND RADIUS |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
VACUUM |
| 2” | 3” | 10” | 150 | 1.34 | Full
| | 3” | 4” | 15” | 150 | 1.89 | Full
| | 4” | 5” | 20” | 150 | 2.45 | Full |
|
SW373 FEP CHEMICAL SUCTION HOSE
- Designed for sanitary, pharmaceutical, high purity, distillery flex connections, and industrial chemicals with high temperature factors.
- Handles 99.5% of all known industrial chemicals
- Tube: Extruded white FDA FEP (Teflon® or Neoflon®).
- Reinforcement: Textile with wire helix.
- Cover: Yellow EPDM.
- Temperature: -40° to +300°F.
|
|
| I.D. |
O.D. |
BEND RADIUS |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
VACUUM |
| 1/2” | 31/32” | 7” | 500 | .37 | Full
| | 3/4” | 11/4” | 8” | 500 | .55 | Full
| | 1” | 117/32” | 9” | 400 | .69 | Full
| | 11/4” | 13/4” | 11” | 375 | .75 | Full
| | 11/2” | 21/8” | 12” | 350 | 1.11 | Full
| | 2” | 211/16” | 16” | 300 | 1.57 | Full
| | 3” | 37/8” | 30” | 200 | 2.86 | Full
| | 4” | 5” | 42” | 150 | 4.28 | Full
| | 6” | 71/8” | 48” | 100 | 7.66 | Full |
|
Concrete Hose
|
SS120 CONCRETE PUMP HOSE
- Economically designed concrete placement hose for wet abrasive materials.
- Excellent flexibility for handling ease.
- Rugged, abrasion resistant SBR cover protects against cuts, scuffs, gouges, and ozone attack.
- Tube: Extruded SBR.
- Reinforcement: Textile
- Cover: SBR.
- Temperature: -40° to +180°F.
|
|
| I.D. |
O.D. |
REINFORCEMENT |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
| 1” | 11/2” | 2 plies | 800 | .46
| | 11/4” | 13/4” | 2 plies | 800 | .57
| | 11/2” | 23/16” | 2 plies | 800 | .99
| | 2” | 23/4” | 4 plies | 800 | 1.42
| | 21/2” | 31/4” | 4 plies | 500 | 1.71
| | 3” | 41/16” | 4 plies | 500 | 2.91
| | 31/2” | 49/16” | 4 plies | 500 | 3.47
| | 4” | 53/16” | 4 plies | 500 | 4.15
| | 41/2” | 511/16” | 6 plies | 500 | 4.52
| | 5” | 61/8” | 4 plies | 500 | 4.79
| | 6” | 71/4” | 6 plies | 500 | 6.40 |
|
SS123 PREMIUM CONCRETE PUMP HOSE
- Premium grade, high quality concrete placement hose for wet abrasive materials.
- Excellent flexibility for handling ease and kink resistance.
- Rugged, abrasion resistant, all purpose cover protects against cuts, scuffs, gouges, and ozone attack.
- Tube: Extruded SBR.
- Reinforcement: Textile
- Cover: SBR.
- Temperature: -40° to +180°F.
|
|
| I.D. |
O.D. |
REINFORCEMENT |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
| 1” | 11/2” | 2 plies | 800 | .46
| | 11/4” | 13/4” | 2 plies | 800 | .57
| | 11/2” | 23/16” | 2 plies | 800 | .99
| | 2” | 213/16” | 4 plies | 800 | 1.40
| | 21/2” | 35/16” | 4 plies | 500 | 1.77
| | 3” | 41/16” | 6 plies | 500 | 2.66
| | 4” | 51/16” | 6 plies | 500 | 3.98
| | 5” | 61/4” | 6 plies | 500 | 4.82
| | 6” | 75/16” | 6 plies | 500 | 6.03 |
|
