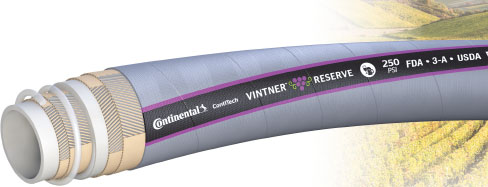

Vintner™ Reserve
Hose Held to the higest standards, yours.
Only quality makes the cut in your operation and in Continental beverage hose. Manufactured from superior materials to meet and exceed hygiene standards, our hose moves more than wine. It delivers peace of mind
- Vintner™ Reserve is primarily for liquid transfer in wineries, breweries and for beverage production.
- For handling in-plant and or tank truck transfer of wine, beer and other non-oily liquid foodstuffs
- Resistant to conventional cleaning agents and Cleaning in place processes
- The hose is built on special chrome mandrel to ensure maximum cleanliness
- FDA/USDA-compliant and conforms to 3-A Sanitary Standard 18-03
- Together with our Crimped coupling systems and rubber protection rings, it becomes the ideal hose assembly
Working/Brust Pressure: 250 PSI/1000 PSI
Temperature: 30° F to 220°F (-34° C to 104° C)
Tube: White Chlorobutyl tube wont impact rubbery tastes or smells
Size Available: 1, 1½, 2, 2½, 3
Reinforcement: Spiral-piled sunthetic fabric with monofilament helix
Cover: Gray EPDM synthetic rubber (wrapped)
Couplings: ContiTech Crimp specs Available with Dixon Sanitary Fittings
The Cover
- Redesigned branding
- Icon represents application
- Flexible
- Cover leavs no stain on the floor when dragged
The Tube
- Vintner™ Reserve tube is easy to keep clean
- Vintner™ Reserve tube wont discolor foods or beverages
- Smooth, homogeneous liner will not impart taste or odor
The Reinforcement
- The monofilament helix is rust proof and is a crush- resistant alternate to traditional softwall or steel wire, reinforced hoses
- 4-to-1 safety factor
The Features
- Easy to clean
- Lightweight
- Crush and kink resistant
| SAP |
ID |
OD |
W.P. |
Bend Radius |
Vacuum HG |
Weight |
| in |
mm |
in |
mm |
psi |
MPa |
in |
mm |
in |
mm |
lb/ft |
kg/m |
| 20991699 |
1 |
25.4 |
1.56 |
39.70 |
250 |
1.72 |
3 |
76 |
27 |
686 |
0.60 |
0.89 |
| 20992570 |
1½ |
38.1 |
2.06 |
52.34 |
250 |
1.72 |
4 |
102 |
27 |
686 |
0.83 |
1.24 |
| 20992571 |
2 |
50.8 |
2.61 |
66.25 |
250 |
1.72 |
7 |
178 |
27 |
686 |
1.18 |
1.76 |
| 20992572 |
2½ |
63.5 |
3.16 |
80.34 |
250 |
1.72 |
10 |
254 |
27 |
686 |
1.59 |
2.37 |
| 20992573 |
3 |
76.2 |
3.81 |
96.85 |
250 |
1.72 |
12 |
305 |
27 |
686 |
2.34 |
3.48 |
|
