Washdown Hose
Quote Cart: 0 item(s) | View Quote Cart
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sureline® Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
Sureline® is for a wide range of industrial, construction, and agricultural water discharge applications in which a generalservice water hose is needed. Construction> Tube EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance) > CoverRed or black EPDM synthetic rubber > ReinforcementSpiral synthetic yarn Temperature Range–40°F to 190°F (–40°C to 88°C) |
Packaging
3/16”–3/4” – 500’ reels, maximum 3 pieces, 50’ increments Example: 1/2” Sureline® Continental ContiTech 150 psi WP CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Order Codes569–048 (red) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hose design ratio (burst pressure) 4:1. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

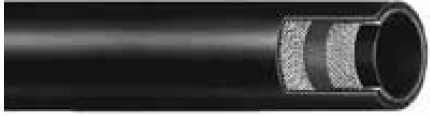

Plicord® Washdown with Optional Integral Tapered Nozzle Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
Plicord® Washdown is a quality water discharge hose for the environments typically found in paper mills and other industrial operations. It can be supplied with an integral rubber tapered nozzle. Construction> Tube Black SBR synthetic rubber) > CoverBlack SBR synthetic rubber (wrapped impression). Also available in a green or white cover (non-FDA). > ReinforcementSpiral-plied synthetic fabric Temperature Range-25°F to 200°F (-32°C to 93°C) Packaging50' lengths, coiled and poly-wrapped |
Branding (Spiral)
Example: Continetal ContiTech Plicord® Washdown 150 psi Max WP CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Also available with integral tapered nozzle. Non-Stock/SizesHose: 400' minimum order in 400' increments Hose with tapered nozzle: two 50' lengths in two-length increments Order Codes542-454 (black) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hose design ratio (burst pressure) 4:1. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

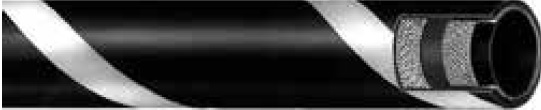

Pulp & Paper Washdown with Optional Integral Tapered Nozzle
Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
This is a heavy-duty water discharge hose for washdown service in pulp and paper mills where kink resistance is of major importance. This hose can be supplied with an integral rubber tapered nozzle. Construction> Tube Black EPDM synthetic rubber (also available in white, non-FDA) > CoverBlack EPDM synthetic rubber > ReinforcementSpiral-plied synthetic fabric Temperature Range-25°F to 200°F (-32°C to 93°C) Packaging50' lengths, coiled and poly-wrapped |
Branding (Spiral)
Example: Continental ContiTech HD Washdown 300 psi Max WP CouplingsContact fitting manufacturer for proper fitting recommendation and coupling procedure. Also available with an integral tapered nozzle. Non-Stock/SizesHose: 400' minimum order in 400' increments Hose with tapered nozzle: Two 50' lengths in two-length increments Order Codes542-452 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hose design ratio (burst pressure) 4:1. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
Washdown Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 40°F to 190°F (–40°C to 88°C) Packaging 3/16”–3/4” – 500’ reels, maximum 3 pieces, 50’ inc |
| 569–048 (red) 569–049 (black) Sureline® SAP # ID Nom. |
| 25°F to 200°F (-32°C to 93°C) Packaging 50' lengths, coiled and poly-wrapped Branding (Spiral) Example: Continetal ContiTech P |
| 150 psi Max WP Couplings Contact fitting manufacturer for proper fitting recommendation and coupling proced |
| 50' lengths in two-length increments Order Codes 542-454 (black) 542-455 (green) 542-507 (white) Plicord® Washdown SAP # ID Nom. |
| 3/4”–1/2” ID 1”–1/2” ID 1 1/4”–5/8” ID 1 1/2”–3/4” ID Pulp & Paper Washdown with Optional Integral Tapered Nozzle Product Specifications Application |
| 25°F to 200°F (-32°C to 93°C) Packaging 50' lengths, coiled and poly-wrapped Branding (Spiral) Example: Continental ContiTech |
| 300 psi Max WP Couplings Contact fitting manufacturer for proper fitting recommendation and coupling proced |
| 50' lengths in two-length increments Order Codes 542-452 Plicord® Pulp & Paper Washdown SAP # ID Nom. |
| 3/4”–1/2” ID 1"–1/2" ID 1 1/4"–5/8" ID 1 1/2"–3/4" ID |
