Goodyear Rubber Products

Water Discharge Hose

Name: Water Discharge Hose
Brand: Goodyear Rubber Products
Availability: InStock

Quote Cart: 0 item(s) | View Quote Cart

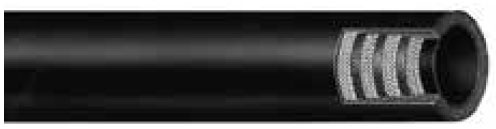

Plicord® HD Water Discharge

Product Specifications

Application

Plicord® HD Water Discharge is a heavy-duty, all-purpose hose with excellent abrasion resistance. It is ideal for service in quarries, mines and construction.

Construction
< Tube

Black SBR synthetic rubber

< Cover

Black SBR synthetic rubber (wrapped finish)

< Reinforcement

Four spiral-plies of synthetic fabric

Temperature Range

-25°F to 180°F (-32°C to 82°C)

Packaging

1”–8” – 100' lengths, coiled and poly–wrapped

Branding (Spiral)

Example: Continental ContiTech Plicord® HD Water

Couplings

Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.

Order Codes

541–437 (8” and above)
542–437 (65/8” and below)

SAP #	ID		Nom. OD		Max. WP		Weight
Black	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20016585	1½	38.1	2.00	50.8	200	1.38	0.79	1.18
20016592	2	50.8	2.50	63.5	200	1.38	0.97	1.44
20016598	2½	63.5	3.06	77.7	200	1.38	1.36	2.02
20016602	3	76.2	3.55	90.2	200	1.38	1.60	2.38
20016608	4	101.6	4.58	116.3	150	1.03	2.10	3.13
20016613	4½	114.3	5.07	128.8	150	1.03	2.34	3.48
20016614	5	127.0	5.57	141.5	150	1.03	2.59	3.85
20016618	6	152.4	6.53	165.9	150	1.03	2.87	4.27
20015553	6⅝	168.3	7.22	183.4	150	1.03	3.58	5.33
20015559	8	203.2	8.57	217.7	100	0.69	4.06	6.04
20620155	8⅝	219.1	9.19	233.4	100	0.69	4.57	6.81
20015561	10	254.0	10.63	270.0	100	0.69	5.73	8.54
20015564	12	304.8	12.66	321.6	100	0.69	6.79	10.12

Hose design ratio (burst pressure) 4:1 above 150 psi WP; 3:1 up to 150 psi WP

Spiraflex® Red Medium Duty

Product Specifications

Application

This hose is for medium-duty discharge applications in mining, construction, industry, agriculture and marine service. It has limited oil and chemical applications.

Construction
< Tube

Black Pliovic®/nitrile rubber tube

< Cover

Red Pliovic®, MSHA 2G-14C/16

< Reinforcement

Spiral synthetic yarn, one layer longitudinal synthetic yarn

Temperature Range

-10°F to 150°F (-23°C to 66°C)

Packaging

300' continuous one-piece, coiled and banded

Branding (Spiral)

Example: Continental ContiTech Spiraflex® Red 2” (50.8 mm) 150 psi WP (1.03 MPa) Flame-resistant USMSHA 2G-14C/16 Made in USA

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

Order Codes

537-521

SAP #	ID		Nom. OD		Max. WP		Weight
Red	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20012500	1½	38.1	1.71	43.4	150	1.03	0.23	0.34
20012501	2	50.8	2.24	56.9	150	1.03	0.36	0.54
20012502	2½	63.5	2.79	70.9	150	1.03	0.41	0.61
20012503	3	76.2	3.29	83.6	125	0.86	0.46	0.68
20012504	4	101.6	4.32	109.7	100	0.69	0.73	1.09
20012505	6	152.4	6.40	162.6	100	0.69	1.18	1.76

Hose design ratio (burst pressure) 3:1.
Note: Working pressures are rated at 72°F (22°C).

Spiraflex® Yellow Heavy Duty

Product Specifications

Application

This hose is for heavy-duty applications in mining, agriculture, construction and marine service. It has limited oil and chemical applications.

Construction
< Tube

Black Pliovic®/nitrile rubber tube

< Cover

Yellow fire-retardant Pliovic®, MSHA 2G-14C/15

< Reinforcement

Synthetic fabric

Temperature Range

-10°F to 150°F (-23°C to 66°C)

Packaging

300' continuous one-piece, coiled and banded

Branding (Spiral)

Example: Continental ContiTech Spiraflex® Yellow 2” (50.8 mm), 200 psi (1.38 MPa) Flame-resistant USMSHA 2G-14C/15 Made in USA

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure.

Order Codes

537-513

SAP #	ID		Nom. OD		Max. WP		Weight
Yellow	in.	mm	in.	mm	psi	MPa	lb./ft.	kg/m
20012467	1½	38.1	1.77	45.0	200	1.38	0.32	0.48
20012469	2	50.8	2.34	59.4	200	1.38	0.42	0.63
20012470	2½	63.5	2.88	73.2	200	1.38	0.66	0.98
20012472	3	76.2	3.40	86.4	200	1.38	0.76	1.13
20012475	4	101.6	4.41	112.0	150	1.03	1.00	1.49
20012480	6	152.4	6.48	164.6	150	1.03	1.69	2.51

Hose design ratio (burst pressure) 3:1.
Note: Working pressures are rated at 22°C.

Add to Quote Cart

Applications

Water Discharge Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.

Materials Overview

Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.

Selection Guidance

Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.

Installation and Maintenance Notes

Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.

Industries Served

Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.

Technical Specifications

Existing Technical Claim (Verbatim)
25°F to 180°F (-32°C to 82°C) Packaging 1”–8” – 100' lengths, coiled and poly–wrapped Branding (
541–437 (8” and above) 542–437 (65/8” and below) SAP # ID Nom.
12 Hose design ratio (burst pressure) 4:1 above 150 psi WP; 3:1 up to 150 psi WP Spiraflex® Red Medium Duty Product Specifications Application This hose is for medium-duty d
8 mm) 150 psi WP (1.
537-521 SAP # ID Nom.
8 mm), 200 psi (1.
537-513 SAP # ID Nom.
