Welding
*Fuel Gases are defined in ARPM IP-7 welding hose standard. Flammable compressed gases commonly used in the welding and cutting industry including, but not limited to, acetylene, hydrogen, methane/natural gas, LP gas, propylene and methylacetylene-propadiene stabilized. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||

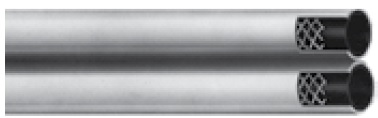

Twin–Line Welding Grade T – Type VD Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
Use for welding service This hose meets ARPM IP-7 and CGA E-1 standards for Grade T welding hose and is non-conductive Construction> Tube Wingprene® synthetic rubber, compatible with all common welding fuel gases > CoverChemivic synthetic rubber with a smooth cover > ReinforcementSpiral synthetic yarn Temperature Range-40°F to 120°F (-40°C to 49°C) |
Packaging
500' reels BrandingExample: Twin-Line 1/4" Grade T Fuel Gas Std Duty Max WP 200 psi Meets ARPM IP-7/CGA E-1 Made In USA Continental ContiTech CouplingsRefer to the ContiTech Industrial Hose Assembly Manual for crimp specifications Coupled assemblies available Order Codes569-618 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hose design ratio (burst pressure) 4:1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||

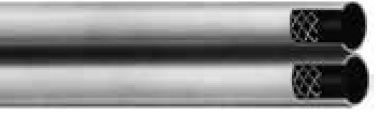

Twin–Line Welding Grade RM – Type VD Product Specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
Use for welding service. This hose meets the ARPM IP-7 standard for Grade RM welding hose and is non-conductive. Construction> Tube SBR synthetic rubber, compatible with oxygen and acetylene gases > CoverChemivic synthetic rubber with a smooth cover > ReinforcementSpiral synthetic yarn Temperature Range-40°F to 120°F (-40°C to 49°C) |
Packaging
500' reels BrandingExample: Twin-Line 1/4" Grade RM Acetylene Only Std Duty Max WP 200 psi Meets ARPM IP-7 Made in USA Continental ContiTech CouplingsRefer to the ContiTech Industrial Hose Assembly Manual for crimp specifications. Order Codes569-598 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hose design ratio (burst pressure) 4:1. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
Welding Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 569-618 Twin-Line Welding Grade T SAP # ID Nom. |
| 40°F to 120°F (-40°C to 49°C) Packaging 500' reels Branding Example: Twin-Line 1/4" Grade RM Acetylene Only Std Duty Max WP 20 |
| 569-598 Twin-Line Welding Grade RM SAP # ID Nom. |
