Con Ag Hose

Con–Ag 150 Water S&D

Product Specifications

Application

A general purpose water suction and discharge hose for applications in medium- to heavy-duty operations such as construction or agriculture

Temperature Range

-40°F to 180°F (-40°C to 82°C)

Branding

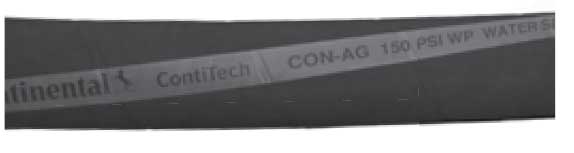

Continental ContiTech CON-AG 150 WATER S&D 150 psi WP ##### Made in Canada

Order Codes

542-657 (1”–6”) 541-657 (8”)

Construction
> Tube

Black EPDM

> Cover

Black EPDM (wrapped impression)

> Reinforcement

Spiral-plied fabrics with double wire helix

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure

SAP#	ID		Nom. OD		Max. WP		Bend Radius		Vaccum HG		Weight
Black	in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lb./ft.	kg/m
20957399	1	25.4	1.40	35.5	150	1.03	3	76	29	737	0.48	0.71
20957430	1 1\4	31.8	1.25	31.8	150	1.03	4	102	29	737	0.61	0.91
20957431	1 1\2	38.1	1.50	38.1	150	1.03	5	127	29	737	0.72	1.07
20957432	2	50.8	2.00	50.8	150	1.03	7	178	29	737	1.02	1.52
20957433	2 1\2	63.5	2.50	63.5	150	1.03	10	254	29	737	1.46	2.17
20957434	3	76.2	3.00	76.2	150	1.03	14	356	29	737	1.78	2.65
20957417	4	101.6	4.00	101.6	150	1.03	18	457	29	737	2.55	3.80
20957418	6	152.4	6.00	152.4	150	1.03	27	686	29	737	5.31	7.90
20957501	8	203.2	8.01	203.4	150	1.03	48	1219	29	737	9.13	13.59

Con-Ag Water S&D

Product Specifications

Application

A general-purpose water suction and discharge hose for applications in medium- to heavy-duty operations such as construction or agriculture

Temperature Range

-40°F to 180°F (-40°C to 82°C)

Branding

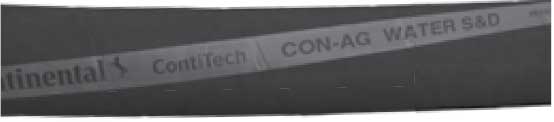

Continental ContiTech CON-AG 150 WATER S&D 150 psi WP ##### Made in Canada
(1/2” spiral transfer tape, yellow backing with black lettering)

Order Codes

542-159

Construction
> Tube

Black EPDM

> Cover

Black EPDM (wrapped impression)

> Reinforcement

Spiral-plied fabrics with double wire helix

Couplings

Contact fitting manufacturer for proper fitting recommendation and coupling procedure

SAP#	ID		Nom. OD		Max. WP		Bend Radius		Vaccum HG		Weight
Black	in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lb./ft.	kg/m
20016431	1	25.4	1.40	35.5	125	0.86	3	76	29	737	0.48	0.71
20016432	1 1\4	31.8	1.65	41.9	125	0.86	4	102	29	737	0.61	0.91
20016433	1 1\2	38.1	1.90	48.3	125	0.86	5	127	29	737	0.72	1.07
20016437	2	50.8	2.40	61.0	125	0.86	7	178	29	737	0.94	1.40
20016442	2 1/2	63.5	2.95	75.0	100	0.69	10	254	29	737	1.36	2.02
20016447	3	76.2	3.49	88.7	100	0.69	14	356	29	737	1.72	2.56
20016452	4	101.6	4.54	115.3	75	0.52	18	457	29	737	2.48	3.69
20016459	6	152.4	6.68	169.6	75	0.52	27	686	29	737	5.13	7.63
20015068	8	203.2	8.88	225.6	75	0.52	48	1219	29	737	8.76	13.04
