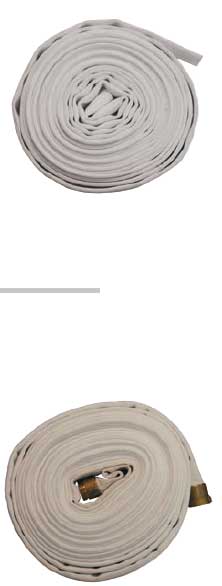

300# Single Jacket All Polyester Fire Hose
Features:
- outer construction: single jacket, all polyester
- tube construction: EPDM rubber lining
- proof pressure: 300 PSI
- service test pressure: 150 PSI at ambient temperature (70°F)
- working pressure: 135 PSI at ambient temperature (70°F)
- 25' and 75' lengths, U/L labeled hoses and other threads and configurations are available,
contact Dixon™
| Size |
Bowl |
Length |
Part # |
| 1 1\2" |
1-3/4" |
50' |
A315-50UC |
| 1 1\2" |
1-3/4" |
100' |
A315-100UC |
| 2" |
2-1/4" |
50' |
A320-50UC |
| 2" |
2-1/4" |
100' |
A320-100UC |
| 2 1\2" |
2-13/16" |
50' |
A325-50UC |
| 2 1\2" |
2-13/16" |
100' |
A325-100UC |
| 3" |
3-3/8" |
50' |
A330-50UC |
| 3" |
3-3/8" |
100' |
A330-100UC |
Coupled with female and male expansion ring couplings
| Size |
Length |
Rocker Lug Aluminum NST (NH) RAF |
Rocker Lug Brass NST (NH) RBF |
Pin Lug Brass NST (NH) PBF |
Rocker Lug Aluminum NPSH RAS |
| 1 1\2" |
50' |
A315-50RAF |
A315-50RBF |
A315-50PBF |
A315-50RAS |
| 1 1\2" |
100' |
A315100RAF |
A315100RBF |
A315100PBF |
A315100RAS |
| 1 1\2" |
50' |
|
|
|
A320-50RAS |
| 1 1\2" |
100' |
|
|
|
A320100RAS |
| 1 1\2" |
50' |
A325-50RAF |
A325-50RBF |
A325-50PBF |
A325-50RAS |
| 1 1\2" |
100' |
A325100RAF |
A325100RBF |
A325100PBF |
A325100RAS |
| 1 1\2" |
50' |
|
|
|
A330-50RAS |
| 1 1\2" |
100' |
|
|
|
A330100RAS |
other threads and configurations available, contact Dixon™
|
|
500# Single Jacket All Polyester Fire Hose
Features:
- outer construction: single jacket, all polyester
- tube construction: EPDM rubber lining
- proof pressure: 500 PSI
- service test pressure: 250 PSI at ambient temperature (70°F)
- working pressure: 225 PSI at ambient temperature (70°F)
- 75' lengths, U/L labeled hoses and other threads and configurations are available, contact Dixon™
Uncoupled
| Size |
Bowl |
Length |
Part # |
| 1" |
1-1/4" |
50' |
A510-50UC |
| 1" |
1-1/4" |
100' |
A510-100UC |
| 1 1\2" |
1-3/4" |
50' |
A515-50UC |
| 1 1\2" |
1-3/4" |
100' |
A515-100UC |
| 2 1\2" |
2-13/16" |
50' |
A525-50UC |
| 2 1\2" |
2-13/16" |
100' |
A525-100UC |
Coupled with female and male expansion ring couplings
| Size |
Length |
Rocker Lug Aluminum NST (NH) RAF |
Rocker Lug Brass NST (NH) RBF |
Pin Lug Brass NST (NH) PBF |
Rocker Lug Aluminum NPSH RAS |
| 1" |
50' |
--- |
--- |
--- |
A510-50RAS
|
| 1" |
100' |
--- |
--- |
--- |
A510100RAS
|
| 1½" |
25' |
A515-25RAF |
--- |
--- |
A515-25RAS
|
| 1½" |
50' |
A515-50RAF |
A515-50RBF |
A515-50PBF |
A515-50RAS
|
| 1½" |
75' |
A515-75RAF |
--- |
--- |
---
|
| 1½" |
100' |
A515100RAF |
A515100RBF |
A515100PBF |
A515100RAS
|
| 2½" |
25' |
A525-25RAF |
--- |
--- |
A525-25RAS
|
| 2½" |
50' |
A525-50RAF |
A525-50RBF |
A525-50PBF |
A525-50RAS |
| 2½" |
75' |
A525-75RAF |
--- |
--- |
A525-75RAS |
| 2½" | 100' | A525100RAF | A525100RBF | A525100PBF | A525100RAS |
other threads and configurations available, contact Dixon™
|
|
500# Single Jacket All-Polyester Fire Hose - U/L labeled
Features:
• outer construction: single jacket, all polyester
• tube construction: EPDM rubber lining
• proof pressure: 500 PSI
• service test pressure: 250 PSI at ambient temperature (70°F)
• working pressure: 225 PSI at ambient temperature (70°F)
• Underwriters Listed
• impregnated hose and other lengths threads and configurations are available, contact
Dixon™
Coupled with female and male expansion ring couplings
| Size |
Bowl |
Length |
NST Thread Part # |
NPSH Thread Part # |
| 1½" |
combo lug, brass |
50' |
A515U50CBF |
A515U50CBS |
| 1½" |
combo lug, brass |
75' |
A515U75CBF |
A515U75CBS |
| 1½" |
combo lug, brass |
100' |
A515U100CBF |
A515U100CBS |
| 2½" |
combo lug, brass |
50' |
A525U50CBF |
500# Single Jacket All-Polyester Fire Hose - Color Impregnated
Features:
- outer construction: single jacket, all polyester
- tube construction: EPDM rubber lining
- proof pressure: 500 PSI
- service test pressure: 250 PSI
- working pressure: 225 PSI at ambient temperature (70°F)
- consult Dixon™ for pricing and availability of other colors, lengths, threads and configurations
Coupled with female and male expansion ring couplings
| Size |
Coupling Type |
Length |
Color |
Part # |
| 1½" |
rocker lug, aluminum, NST (NH) |
50' |
yellow |
A515Y50RAF |
| 1½" |
rocker lug, aluminum, NPSH |
50' |
yellow |
A515Y50RAS |
| 1½" |
rocker lug, aluminum, NST (NH) |
50' |
red |
A515R50RAF |
| 1½" |
rocker lug, aluminum, NPSH |
50' |
red |
A515R50RAS |
| 1½" |
rocker lug, aluminum, NST (NH) |
50' |
orange |
A515OR50RAF |
| 1½" |
rocker lug, aluminum, NPSH |
50' |
orange |
A515OR50RAS |
800# Double Jacket All Polyester Fire Hose
Features:
- outer construction: double jacket, all polyester
- tube construction: EPDM rubber lining
- proof pressure: 800 PSI
- service test pressure: 400 PSI
- working pressure: 360 PSI at ambient temperature (70°F)
- consult Dixon™ for pricing and availability of 75' lengths and other threads and configurations
Coupled with female and male expansion ring couplings
Coupled with female and male expansion ring couplings
| Size |
Length |
Rocker Lug Aluminum NST (NH) RAF |
Rocker Lug Brass NST (NH) RBF |
Pin Lug Brass NST (NH) PBF |
Rocker Lug Aluminum NPSH RAS |
| 1½" |
25' |
D815-25RAF |
|
|
|
| 1½" |
50' |
D815-50RAF |
D815-50RBF |
D815-50PBF |
D815-50RAS |
| 1½" |
75' |
D815-75RAF |
|
|
D815-75RAS |
| 1½" |
100' |
D815100RAF |
D815100RBF |
D815100PBF |
D815100RAS |
| 2½" |
25' |
D825-25RAF |
|
|
|
| 2½" |
50' |
D825-50RAF |
D825-50RBF |
D825-50PBF |
D825-50RAS |
| 2½" |
75' |
D825-75RAF |
|
|
D825-75RAS |
| 2½" |
100' |
D825100RAF |
D825100RBF |
D825100PBF |
D825100RAS |
800# Double Jacket All-Polyester Fire Hose - Impregnated
Features:
- outer construction: double jacket, all polyester
- tube construction: black, synthetic rubber liner
- proof pressure: 800 PSI at 70°F (21°C)
- service test pressure: 400 PSI at 70°F (21°C)
- working pressure: 360 PSI at 70°F (21°C)
- other lengths, threads and couplings and colors (yellow, red, blue, tan, orange, green, black)
are available, contact Dixon™
Coupled with female & male NST (NH) thread, rocker lug, AL expansion ring couplings
| Size |
Length |
Part # |
| 1½" |
50' |
D815Y50RAF |
| 1½" |
100' |
D815Y100RAF |
| 2½" |
50' |
D825Y50RAF |
| 2½" |
100' |
D825Y100RAF |
Coupled with female and male thread, rocker lug, AL expansion ring couplings
| Size |
Thread |
Length |
Part # |
| 1½" |
NPSH |
50' |
D815Y50RAS |
| 1½" |
NPSH |
100' |
D815Y100RAS |
|
|
