INDUSTRIAL SMOOTHBORE – PTFE HOSE |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PARKER/PAGE International Smoothbore PTFE Hose is specified in many of the most challenging industrial applications. The extruded PTFE tube has excellent flex life, high temperature tolerance and superior chemical resistance. PARKER/PAGE PTFE is steam compatible and non adhesive, making it an excellent choice for applications requiring steam cleaning of an assembly or transfer of highly viscous media such as adhesives and paints. PARKER/PAGE PTFE hose products are FDA compliant and an ideal choice for food and beverage applications. In addition to high temperature hydraulic and pneumatic systems, such as those found in steel mills, foundries, transit buses and air compressors are examples of industrial applications that showcase PARKER/PAGE hose as a problem solver. PARKER/PAGE International Smooth Bore Hoses are available in both standard (.030) wall and heavy (.040) wall sizes. Extra heavy wall hoses are available for special application requirements. Non Conductive & Conductive Some applications require conductivity of the tube in order to dissipate static build up. PARKER/PAGE International offers a full range of smooth bore hoses with non-conductive (natural) and conductive (black) inner core to meet today’s most demanding applications. This tubing may be supplied with a fully conductive liner and also, a fully conductive tube. Fully conductive tubes are available in PTFE and PFA. Industrial grade conductivity conforms to AMS-H-27267, having a minimum conductance of 10-20 micro amps with 1,000 vdc applied over a 14” length. Upon special request an ISO grade conforming to a maximum of a 1 mega ohm resistance over a one meter length when tested in accordance with ISO 8031 is available.

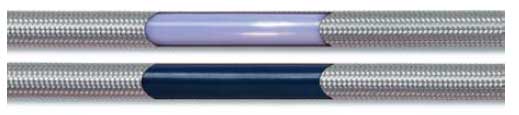

The S30 Series hose is manufactured in natural or with an inner conductive static dissipating liner that provides continuity between the end fittings for applications where flow induced electrostatic charges could be a potential hazard. S30 (Natural) & S30B (Conductive)PTFE with Stainless Steel Braid
PAGE S40 Series hose is manufactured as above, however, with a minimum wall thickness of .040” esulting in 33% more PTFE than other manufacturers. The additional tubing thickness provides an improved bend radius, greater kink resistance and decreased gas permeation. S40 (Natural) & S40B (Conductive)PTFE Heavy Wall with Stainless Steel Braid
All ratings based on 72°F (22°C) - All dimensions nominal - Working pressures and vacuum ratings may vary depending upon end connections and process and temperature parameters. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TRUE BORE – INDUSTRIAL SMOOTHBORE PTFE HOSEWith Stainless Steel BraidPARKER/PAGE International TRUE BORE Smoothbore PTFE hose is constructed with an extruded virgin Fluoropolymer (PTFE) inner core reinforced with a tightly woven stainless steel braid. The braid serves a dual purpose, by (a) providing a protective covering and (b) allowing the hose to carry substantial operational pressure while maintaining a 4:1 safety factor.
PARKER/PAGE Smoothbore inner core is also available with special outer reinforcement braids. Special metal braids such as Monel®, Hastelloy® and non-metallic braids of Nomex®, KEVLAR®, Kynar®, PEEK™, polyester, and many others can be furnished on request. STW (Natural) & STB (Conductive)True Bore Smoothbore PTFE with Stainless Steel Braid
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Add to Quote Cart
Applications
PTFE Hose is used in industrial transfer, handling, and support operations where reliable product performance and practical sourcing support are required.
Materials Overview
Material selection varies by media, environment, fitting interface, and service conditions. Existing product details above remain the primary source for specifications.
Selection Guidance
Match product configuration to your operating media, routing constraints, connection standards, and maintenance expectations. Use the quote cart to submit project requirements.
Installation and Maintenance Notes
Follow manufacturer handling practices, inspect components before installation, verify connection compatibility, and schedule routine inspections based on your service cycle.
Industries Served
Industrial manufacturing, processing, utilities, construction, transportation, and maintenance operations.
Technical Specifications
| Existing Technical Claim (Verbatim) |
|---|
| 72°F (Bars @ 22°C) psi @ 72°F (Bars @ 22°C) In. |
| 22°C) Inch (MM) Lbs. |
